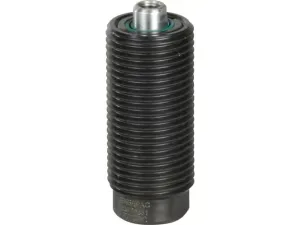

Enerpac CST9191 8.7 kN Threaded Cylinder
Enerpac CST9191; 8.7 kN (1950 lbf) capacity, 19.3 mm stroke, 345 bar max. pressure, single-acting spring return threaded body workholding cylinder.
Dimension E0.39 in
Dimension C2.89 in
Dimension P0.15 in
ApplicationsPush
Product TypeWorkholding Threaded Cylinder
Maximum Operating Pressure5,000 psi
About This Product
CST9191 is a single-acting, spring return workholding cylinder from the Enerpac CST series, featuring a 1.000-12 UNF externally threaded body. The threaded body allows it to be screwed directly into a fixture or clamping device for fine positioning.
At a maximum operating pressure of 345 bar (5,000 psi) it delivers 8.7 kN (1950 lbf) of push force. Stroke is 19.3 mm (0.76 in), effective area 2.52 cm², advance oil capacity 4.8 cm³, overall length 98.3 mm and weight approx. 0.36 kg. The body is steel with a solid plunger.
It is used as a push cylinder in workholding applications such as CNC machining fixtures, welding and assembly jigs where high clamping force is required in limited space.
Features and Benefits
- Minimum cylinder diameter combined with maximized clamping force
- Threaded body allows fine positioning and easy installation
- Internal plunger wipers allow maintenance-free, high-cycle performance
- Center-tapped plunger holds workpiece contact buttons
- Single-acting spring return design simplifies hydraulic tubing requirements
Enerpac CST9191
- Genuine, certified Enerpac product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Dimension E0.39 in
Dimension C2.89 in
Dimension P0.15 in
ApplicationsPush
Product TypeWorkholding Threaded Cylinder
Maximum Operating Pressure5,000 psi
SeriesCST
Dimension C10.32 in
Dimension A3.87 in
Product LineWorkholding Tools
Weight0.8 lbs
Dimension T0.39 in
Maximum Cylinder Capacity (Advance)1950 lbs
Country of OriginUnited States
Dimension D1.000-12 UNF in
Cylinder Effective Area (Advance)0.39 in²
Dimension B3.11 in
Plunger TypeSolid
Cylinder MaterialSteel
Dimension F0.79 in
Dimension D10.88 in
Stroke0.76 in
Dimension K.250-28 UNF in
Oil Capacity (Advance)0.29 in³
Return TypeSingle-Acting, Spring Return
Dimension S0.32 in
