Enerpac CST40251

Photo may not represent actual item. Refer to name and product specs for all details.

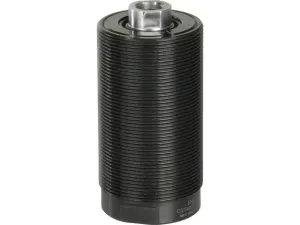

Enerpac CST40251 39.2 kN Hydraulic Cylinder

Enerpac CST40251; 39.2 kN (8,800 lbs) capacity, 26.7 mm (1.05 in) stroke, 345 bar (5,000 psi), single-acting spring-return threaded-body hydraulic cylinder.

EnerpacMFR # CST40251SKU # YLS0OOMEV4ZP6RV
Dimension E0.78 in
Dimension C3.48 in
Dimension P0.31 in
ApplicationsPush
Product TypeWorkholding Threaded Cylinder
Maximum Operating Pressure5,000 psi
Share
Have questions?Chat on WhatsApp

About This Product

CST40251 is a threaded-body hydraulic cylinder from the Enerpac CST workholding range. It is single-acting with spring return and provides 39.2 kN (8,800 lbs) push capacity at 345 bar (5,000 psi). Stroke is 26.7 mm (1.05 in), body thread 1.875-16 UN and plunger thread 0.500-13 UNC. It has a solid plunger and a steel body. It is used to clamp workpieces in machine table and fixture applications. Double-acting models are recommended for high-cycle use.

Features and Benefits

  • Minimum cylinder diameter combined with maximized clamping forces
  • Threaded body allows fine positioning and easy installation
  • Internal plunger wipers allow maintenance-free, high-cycle performance
  • Center-tapped plunger holds workpiece contact buttons
  • Single-acting spring-return design simplifies hydraulic tubing requirements
  • Double-acting models are recommended for high-cycle applications

Enerpac CST40251

  • Genuine, certified Enerpac product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

Dimension E0.78 in
Dimension C3.48 in
Dimension P0.31 in
ApplicationsPush
Product TypeWorkholding Threaded Cylinder
Maximum Operating Pressure5,000 psi
SeriesCST
Dimension E10.75 in
Dimension C10.43 in
Dimension A4.78 in
Product LineWorkholding Tools
Weight2.6 lbs
Dimension T0.47 in
Maximum Cylinder Capacity (Advance)8800 lbs
Country of OriginUnited States
Dimension D1.875-16 UN in
Cylinder Effective Area (Advance)1.76 in²
Dimension B3.73 in
Plunger TypeSolid
Cylinder MaterialSteel
Dimension F1.63 in
Dimension D11.79 in
Stroke1.05 in
Dimension K.500-13 UNC in
Oil Capacity (Advance)1.73 in³
Return TypeSingle-Acting, Spring Return
Dimension S0.67 in

Documents & CAD

Series documents 2· shared by this product series

Repair Parts SheetCST 40KN Single Acting Threaded CylindersPDF·142 KB·English
BrochureWorkholding Cylinders, EnglishPDF·4.2 MB
