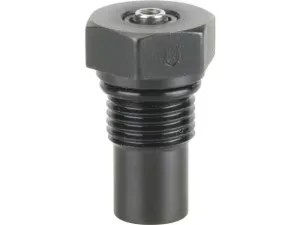

Enerpac CSM272 1.7 kN Manifold Cylinder

Enerpac CSM272; 1.7 kN capacity, 7 mm stroke, 350 bar, M12 x 1.5 threaded single-acting spring return manifold cylinder.

EnerpacMFR # CSM272SKU # CEY-55221B141B82

Oil Capacity (Advance)0,4 cm³

Diameter D211 mm

Maximum Operating Pressure350 bar

Dimension E4,8 mm

Maximum Cylinder Capacity (Advance)1,7 kN

Product TypeWorkholding Manifold Cylinder

Have questions?Chat on WhatsApp

About This Product

CSM272 is a metric-threaded, short-stroke, single-acting, spring return manifold hydraulic cylinder from the Enerpac CSM series. It threads directly into a manifold block in workholding fixtures; oil is supplied through the block, so no fittings or tubing are needed. At a maximum operating pressure of 350 bar it delivers 1.7 kN of advance capacity. Stroke is 7 mm, effective area 0.5 cm² and advance oil capacity 0.4 cm³. The body thread is M12 x 1.5, retracted height (B) is 13.5 mm and weight is approx. 0.1 kg. It is used for clamping and holding workpieces in machining and assembly fixtures with limited space where a short stroke is sufficient.

Features and Benefits

Design eliminates fittings and tubing, saving space and making chip and dirt removal easy
Minimal cylinder height (13.5 mm) enables extremely compact fixture designs
High-strength body and internal plunger wiper for maintenance-free, high-cycle performance
Center-tapped plunger accepts workpiece contact buttons
Standard body dimensions make manifold cavity preparation easy

Enerpac CSM272

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Oil Capacity (Advance)0,4 cm³

Diameter D211 mm

Maximum Operating Pressure350 bar

Dimension E4,8 mm

Maximum Cylinder Capacity (Advance)1,7 kN

Product TypeWorkholding Manifold Cylinder

SeriesCSM

Retracted Height (B)13,5 mm

Product LineWorkholding Tools

Dimension C13,3 mm

Dimension D110,1 mm

Dimension A20,5 mm

Country of OriginTurkey

Dimension F19 mm

Dimension DM12 x 1,5 mm

Dimension J11,4 mm

Dimension C121,7 mm

Stroke7 mm

Cylinder Effective Area (Advance)0,5 cm²

Weight0,1 kg

Return TypeSingle-Acting, Spring Return

Documents & CAD

Series documents 4· shared by this product series

Instruction ManualThreaded body cylinder instruction sheetPDF·5.5 MB 4 languages· in one file

Repair Parts SheetManifold CylindersPDF·61 KB·English

Repair Parts SheetManifold body cylinder repair parts sheet.PDF·138 KB·English

BrochureWorkholding Cylinders, EnglishPDF·4.2 MB

CAD Files 7

3D Model

Alternative Names & Search Terms

CSM272CSM-272CSM 272csm272Enerpac CSM272Enerpac CSM-272Enerpac CSM 272CSM272 manifold cylinderCSM272 hydraulic cylinderEnerpac CSM seriesEnerpac manifold cylinderEnerpac workholding cylinder1.7 kN manifold cylinder7 mm stroke manifold cylinderM12 x 1.5 manifold cylinder350 bar single-acting cylindershort stroke single-acting cylinderfixture clamping cylinder
