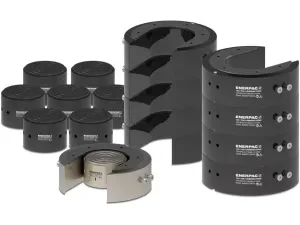

Enerpac CR150L 150 ton Cribbing Ring Set

Enerpac CR150L; 150 ton, 100 mm stroke, 675 mm total stack height tall cribbing ring set for HCR1504 and RAR1504 cylinders.

EnerpacMFR # CR150LSKU # YLS8BNWJCHHH0XR

U-Ring Height S75 mm

Cylinder Collapsed Height A1 (RAR1504)298 mm (11.73 in)

Height with 1 U-Ring C (HCR1504)13.46 in

Cylinder Stroke100 mm (3.94 in)

Contact Area Diameter E200 mm (7.87 in)

U-Ring Height S2.95 in

Have questions?Chat on WhatsApp

About This Product

CR150L is a 150 ton tall cribbing ring set for HCR1504 and RAR1504 cylinders. CR-series cribbing rings replace traditional cribbing methods; each component is dimensionally consistent and engineered to work together. The tall set is chosen for extended reach and for lifts of up to 150 tons per lift point. The complete set includes 9 U-Rings and 8 spacers: CR150LU1 (1), CR150LU2 (8), CR150LP1 (1), CR150LP2 (7). U-Ring height is 75 mm, U-Ring outside diameter 236 mm, contact area diameter 200 mm and cylinder stroke 100 mm. Total set stack height is 675 mm. Height with the complete set is 942 mm with HCR1504 and 970 mm with RAR1504. The CR150A adaptor plate is required when used with HCR1504.

Features and Benefits

Stacking spacers extend cylinder reach and secure it mechanically with cribbing rings
Interlocking U-Rings support the load, replacing high-risk improvised solutions
Fork design with integrated interlocking pin system enables right-first-time placement and keeps hands clear of the load
Ergonomic grip secures U-Rings at multiple angles for placement in tight spaces
Bottom U-Ring is also available separately as a load-holding device
Suitable for lifts of up to 150 tons per lift point

Enerpac CR150L

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

U-Ring Height S75 mm

Cylinder Collapsed Height A1 (RAR1504)298 mm (11.73 in)

Height with 1 U-Ring C (HCR1504)13.46 in

Cylinder Stroke100 mm (3.94 in)

Contact Area Diameter E200 mm (7.87 in)

U-Ring Height S2.95 in

Height with Complete Set B (with RAR1504)38.19 in

Compatible Cylinder SeriesRAR1504, HCR1504

Height with 1 U-Ring C (RAR1504)370 mm

Product TypeCribbing Ring Set

Height with 1 U-Ring (HCR1504)342 mm

SeriesCR

Height with Complete Set B (HCR1504)942 mm (37.09 in)

U-Ring Outside Diameter D236 mm

Cylinder Base Height A2 (HCR1504)267 mm (10.51 in)

Height with 1 U-Ring C (RAR1504)14.57 in

Total Stack Height F26.57 in

Product LineIndustrial Tools

Height with Complete Set (RAR1504)970 mm

Cylinder Collapsed Height A1 (with HCR1504)270 mm (10.63 in)

Cylinder Base Height A2 (with RAR1504)295 mm (11.61 in)

Total Stack Height F675 mm

U-Ring Outside Diameter D9.29 in
