How can I get a price quote for Enerpac CH604?

You can request a fast quote for Enerpac CH604 from Yılsa Engineering. Reference part number CEY-55221B116040. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac CH604 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac CH604 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac CH604?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

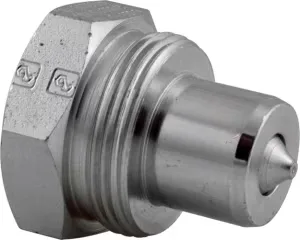

Enerpac CH604 700 bar Hydraulic Coupler Male

Enerpac CH604; 700 bar (10,000 psi), 35 l/min flow, 3/8 in NPTF port, C-Series high flow hydraulic coupler male half.

EnerpacMFR # CH604SKU # CEY-55221B116040

Dimension G25 mm (1.00 in)

Dimension E35 mm (1.38 in)

Country of OriginChina

Dimension F32 mm (1.25 in)

Dimension D35 mm (1.38 in)

Dimension C3/8 nptf mm

Have questions?Chat on WhatsApp

About This Product

CH604 is the male half of the Enerpac C-Series 3/8 in high flow hydraulic coupler. The C-Series coupler is the standard used on most Enerpac pumps and cylinders rated up to 700 bar (10,000 psi) and provides quick and secure connection of hydraulic lines. Maximum operating pressure is 700 bar and maximum flow is 35 l/min. The port size is 3/8 in NPTF. Total length with male and female halves connected (dimension A) is 83 mm (3.26 in). A "2-in-1" dust cap suitable for both male and female coupler halves is included. It is recommended for all Enerpac pumps, cylinders and hose connections where space and porting permit, and is widely used across industrial tools and workholding systems.

Features and Benefits

3/8 in high flow coupler; flow up to 35 l/min
700 bar (10,000 psi) maximum operating pressure
Standard equipment on most Enerpac cylinders
Quick and secure connection of hydraulic lines
Includes "2-in-1" dust cap for male and female halves

Enerpac CH604

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension G25 mm (1.00 in)

Dimension E35 mm (1.38 in)

Country of OriginChina

Dimension F32 mm (1.25 in)

Dimension D35 mm (1.38 in)

Dimension C3/8 nptf mm

Maximum Operating Pressure700 bar (10,000 psi)

Dimension B64 mm (2.87 in)

Part TypeMale Half

Max. Operating Pressure10000 psi

Product TypeHigh Flow Coupler

Maximum Flow Capacity35 l/min (2500 in³/min)

SeriesC

Dimension A83 mm (3.26 in)

Product LineIndustrial Tools, Workholding Tools

Documents & CAD

Series documents 5· shared by this product series

Instruction ManualHydraulic CouplersPDF·237 KB

Instruction ManualCT-604 Hydraulic Coupler Bleed ToolPDF·2.6 MB 4 languages· in one file

CertificateEC2B-C-F_RevH_Oct2022PDF·430 KB

BrochureA-C-F-T-Series Hydraulic Couplers; EnglishPDF·360 KB

BrochureSystem Components & Control ValvesPDF·2.8 MB·English

CAD Files 3

3D Model
