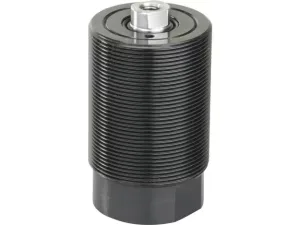

Enerpac CDT18251 17.3 kN Threaded Cylinder

CDT18251 is a threaded-body, double-acting workholding hydraulic cylinder from the Enerpac CDT series. Its inch 1.875-16 UN body thread screws directly into the fixture for fine positioning and easy installation. It is used for push and pull applications. Maximum operating pressure is 5000 psi (≈345 bar). With a 24.9 mm (0.98 in) stroke, push capacity is 3900 lbs (≈17.3 kN) and pull capacity is 2330 lbs (≈10.4 kN). Effective area is 0.77 in² advance and 0.46 in² retract; oil capacity is 0.78 in³ advance and 0.46 in³ retract. Plunger thread is .313-24 UNF, collapsed height (B) 3.23 in (≈82 mm), overall height (A) 4.21 in (≈107 mm) and weight 2.9 lbs (≈1.3 kg). It has a steel body and solid plunger; country of origin is the United States. Its compact diameter and high clamping force suit workpiece clamping in machining fixtures. The double-acting design is recommended for high-cycle applications, and internal plunger wipers support maintenance-free operation.
