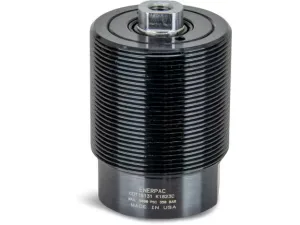

Enerpac CDT18131 17.3 kN Threaded Cylinder

CDT18131 is a double-acting, threaded-body workholding hydraulic cylinder from the Enerpac CDT series. Its 1.875-16 UN external body thread allows it to be screwed directly into a fixture for fine positioning. It provides high clamping force in a small body diameter. Maximum operating pressure is 5,000 psi (approx. 345 bar). At this pressure it produces 17.3 kN (3,900 lbf) push force and 10.4 kN (2,330 lbf) pull force. Stroke is 13 mm (0.51 in). Effective area is 4.97 cm² (0.77 in²) on advance and 2.97 cm² (0.46 in²) on retract. Oil capacity is 6.6 cm³ on advance and 3.9 cm³ on retract. The plunger thread is .313-24 UNF and the cylinder body is steel. Weight is approximately 1.1 kg (2.4 lbs). Country of origin is the United States. It is suited for push and pull applications. The double-acting design is recommended for high-cycle fixture applications.
