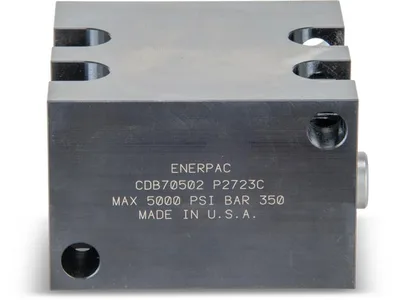

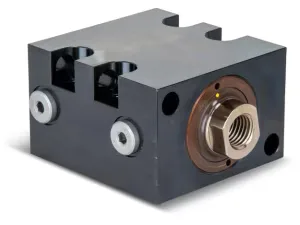

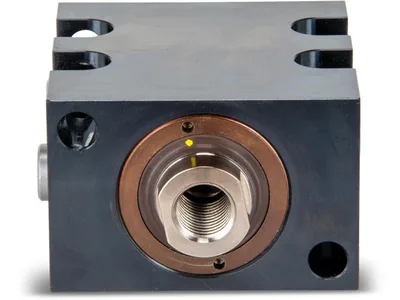

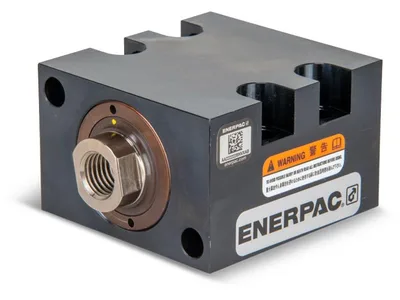

Enerpac CDB70502 67.6 kN Block Cylinder

Enerpac CDB70502; 67.6 kN (15,200 lbf) push capacity, 50 mm (1.97 in) stroke, 350 bar operating pressure, double-acting block-style workholding hydraulic cylinder.

EnerpacMFR # CDB70502SKU # CEY-7B4B2D99CCAD

Dimension N10,4 mm (0.41 in)

Dimension GG1/4" mm

Oil Capacity (Advance)98,2 cm³ (5.99 in³)

Maximum Cylinder Capacity (Retract)9000 lbs

Dimension V12,4 mm (0.6 in)

Dimension R33,0 mm (1.3 in)

Have questions?Chat on WhatsApp

About This Product

CDB70502 is a double-acting, block-body workholding hydraulic cylinder from the Enerpac CDB series. Its compact body takes up little space on a fixture. It can be used with either manifold mounting or plumbed connections. At a maximum operating pressure of 350 bar (5,000 psi), the cylinder delivers 67.6 kN (15,200 lbf) push force and 40.0 kN (9,000 lbf) pull force. Stroke is 50 mm. Oil capacity is 98.2 cm³ on advance and 58.0 cm³ on retract. The oil port is G1/4" (BSPP) and the plunger thread is M20 x 2.5. Weight is approximately 4.3 kg (9.5 lbs). It is suited for clamping, pushing and pulling. Typical uses include holding workpieces in machining fixtures, dies and jigs.

Features and Benefits

Double-acting design: 67.6 kN push, 40.0 kN pull force
Manifold O-ring ports and G1/4" BSPP oil port for flexible plumbing
Integral wiper ring keeps contaminants out to extend service life
Hard chrome-plated plunger and black oxide base
Internally threaded plunger (M20 x 2.5) for easy attachment of fixtures
Compact body requires minimal fixture space

Enerpac CDB70502

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension N10,4 mm (0.41 in)

Dimension GG1/4" mm

Oil Capacity (Advance)98,2 cm³ (5.99 in³)

Maximum Cylinder Capacity (Retract)9000 lbs

Dimension V12,4 mm (0.6 in)

Dimension R33,0 mm (1.3 in)

Dimension C103,9 mm (4.09 in)

Dimension P66,0 mm (2.6 in)

Maximum Operating Pressure350 bar (5,000 psi)

Oil Capacity (Retract)58,0 cm³ (3.54 in³)

Dimension T10,9 mm (0.43 in)

ApplicationsClamp, Push, Pull

Dimension KM20 x 2,5 mm

Product TypeWorkholding Block Cylinder

Dimension L80,0 mm (3.15 in)

SeriesCDB

Model Type15200 lbs Capacity, 1.97 in Stroke

Dimension Z1,3 mm (0.07 in)

Dimension X2.57 in

Dimension J64,0 mm (2.52 in)

Dimension A167,9 mm (6.61 in)

Product LineWorkholding Tools

Weight4,3 kg (9.5 lbs)

Piston Diameter50,0 mm (1.97 in)

Maximum Cylinder Capacity (Advance)15200 lbs

Country of OriginUnited States

Dimension F32,0 mm (0.54 in)

Dimension O30,0 mm (1.18 in)

Dimension D100,1 mm (3.94 in)

Clamping Force Retract40,0 kN

Cylinder Effective Area (Advance)19,6 cm² (3.04 in²)

Cylinder Effective Area (Retract)11,6 cm²

Dimension U29,2 mm (1.15 in)

Dimension B118,1 mm (4.65 in)

Dimension Q66,8 mm (2.63 in)

Plunger TypeSolid

Cylinder Effective Area (Retract)1.8 in²

Cylinder MaterialSteel

Rod Diameter32,0 mm

Dimension H13,7 mm (0.54 in)

Dimension M45,0 mm (1.77 in)

Rod Diameter1.26 in

Stroke50 mm (1.97 in)

Dimension W15,2 mm (0.6 in)

Minimum Operating Pressure40 bar

Dimension S26,9 mm (1.06 in)

Return TypeDouble-Acting, Hydraulic Return

Dimension F131,0 mm (1.22 in)

Clamping Force (Advance)67,6 kN

Documents & CAD

Series documents 4· shared by this product series

Repair Parts SheetCylinder - BlockPDF·248 KB·English

Repair Parts SheetCylinder - BlockPDF·962 KB·English

Repair Parts SheetHydraulic Block Cylinders, CDB SeriesPDF·582 KB·English

BrochureWorkholding Cylinders, EnglishPDF·4.2 MB

CAD Files 5

3D Model

Alternative Names & Search Terms

CDB70502CDB-70502CDB 70502cdb70502Enerpac CDB70502Enerpac CDB-70502CDB70502 block cylinderCDB70502 hydraulic cylinderEnerpac CDB seriesEnerpac block cylinderdouble-acting block cylinderworkholding block cylinder50 mm stroke double-acting cylinder350 bar block hydraulic cylinder15200 lbs block cylinderfixture clamping cylindermanifold mount hydraulic cylinder
