How can I get a price quote for Enerpac CDB40252?

You can request a fast quote for Enerpac CDB40252 from Yılsa Engineering. Reference part number CEY-55221B11A3DC. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac CDB40252 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac CDB40252 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac CDB40252?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

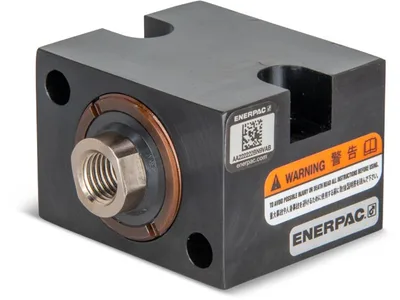

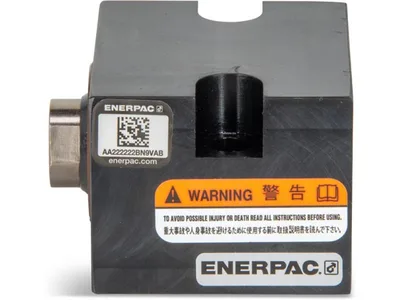

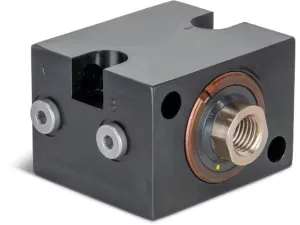

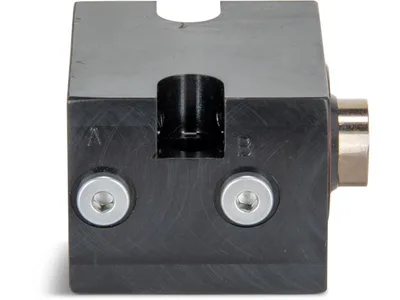

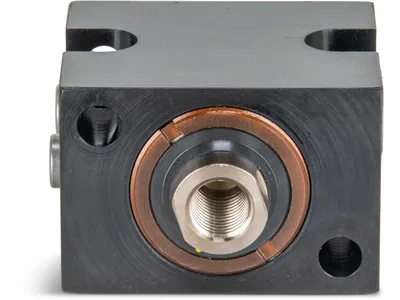

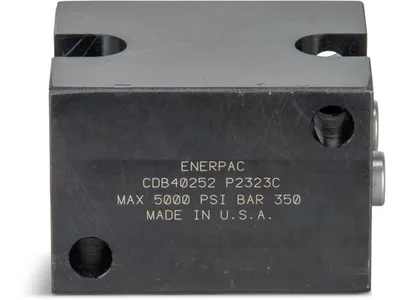

Enerpac CDB40252 43.4 kN Block Cylinder

Enerpac CDB40252; 43.4 kN (9,750 lbs) capacity, 25 mm stroke, 350 bar, double-acting hydraulic block cylinder for clamping, pushing and pulling on fixtures.

EnerpacMFR # CDB40252SKU # CEY-55221B11A3DC

Dimension N9,9 mm (0.39 in)

Dimension GG1/8" mm

Oil Capacity (Advance)31,5 cm³ (1.92 in³)

Maximum Cylinder Capacity (Retract)4900 lbs

Dimension V10,6 mm (0.42 in)

Dimension R27,4 mm (1.08 in)

Have questions?Chat on WhatsApp

About This Product

CDB40252 is a double-acting hydraulic block cylinder from the Enerpac CDB series of workholding tools. Its compact block body takes up little space on the fixture. It is used for clamping, pushing and pulling applications. Rated for a maximum operating pressure of 350 bar (5,000 psi), the cylinder delivers 43.4 kN (9,750 lbs) on advance and 21.8 kN (4,900 lbs) on retract. Stroke is 25 mm. Oil capacity is 31.5 cm³ on advance and 15.7 cm³ on retract. The oil port is G1/8" (BSPP) and the plunger has an M16 x 2.0 internal thread. Weight is approx. 1.9 kg (4.2 lbs). Manifold O-ring ports and a plumbed connection option are both provided. This allows flexible mounting on CNC fixtures and machine-tool clamping systems.

Features and Benefits

Double-acting design: both advance and retract are hydraulically powered
Manifold O-ring ports and G1/8" BSPP oil port for manifold or plumbed mounting
Integral wiper ring keeps contaminants out and extends cylinder life
Hard chrome-plated plunger with M16 x 2.0 internal thread
Compact black-oxide block body that saves fixture space

Enerpac CDB40252

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension N9,9 mm (0.39 in)

Dimension GG1/8" mm

Oil Capacity (Advance)31,5 cm³ (1.92 in³)

Maximum Cylinder Capacity (Retract)4900 lbs

Dimension V10,6 mm (0.42 in)

Dimension R27,4 mm (1.08 in)

Dimension C68,0 mm (2.68 in)

Dimension P55,1 mm (2.17 in)

Maximum Operating Pressure350 bar (5,000 psi)

Oil Capacity (Retract)15,7 cm³ (0.96 in³)

Dimension T9,4 mm (0.37 in)

ApplicationsClamp, Push, Pull

Dimension KM16 x 2,0 mm

Product TypeWorkholding Block Cylinder

Dimension L60,0 mm (2.36 in)

SeriesCDB

Model Type9750 lbs Capacity, .98 in Stroke

Dimension Z1,3 mm (0.05 in)

Dimension X1.48 in

Dimension J32,0 mm (1.26 in)

Dimension A105,0 mm (4.13 in)

Product LineWorkholding Tools

Weight1,9 kg (4.2 lbs)

Piston Diameter39,9 mm (1.57 in)

Maximum Cylinder Capacity (Advance)9750 lbs

Country of OriginUnited States

Dimension F24,6 mm (0.37 in)

Dimension O24,9 mm (0.98 in)

Dimension D80,0 mm (3.15 in)

Clamping Force Retract21,8 kN

Cylinder Effective Area (Advance)12,6 cm² (1.95 in²)

Cylinder Effective Area (Retract)6,3 cm²

Dimension B80,0 mm (3.15 in)

Dimension Q37,6 mm (1.48 in)

Plunger TypeSolid

Cylinder Effective Area (Retract)0.98 in²

Cylinder MaterialSteel

Rod Diameter24,6 mm

Dimension H9,4 mm (0.37 in)

Dimension M35,0 mm (1.38 in)

Rod Diameter0.97 in

Stroke22.6 mm (0.98 in)

Dimension W9,4 mm (0.37 in)

Minimum Operating Pressure40 bar

Dimension S22,0 mm (0.87 in)

Return TypeDouble-Acting, Hydraulic Return

Dimension F123,9 mm (0.94 in)

Clamping Force (Advance)43,3 kN

Documents & CAD

Series documents 4· shared by this product series

Repair Parts SheetCylinder - BlockPDF·248 KB·English

Repair Parts SheetCylinder - BlockPDF·962 KB·English

Repair Parts SheetHydraulic Block Cylinders, CDB SeriesPDF·582 KB·English

BrochureWorkholding Cylinders, EnglishPDF·4.2 MB

CAD Files 5

3D Model
