How can I get a price quote for Enerpac CAU92?

You can request a fast quote for Enerpac CAU92 from Yılsa Engineering. Reference part number CEY-7B4B2D9979EC. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac CAU92 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac CAU92 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac CAU92?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

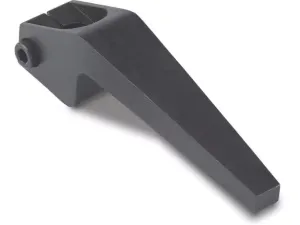

Enerpac CAU92 Upreach Clamp Arm

Enerpac CAU92; upreach clamp arm for 8.0 and 9.0 kN swing clamps, 2.00 kN clamp force at stock length, 160.0 mm arm length, M8 x 1.25 fastening.

EnerpacMFR # CAU92SKU # CEY-7B4B2D9979EC

Dimension G40,0 mm (1.57 in)

Dimension E48,0 mm (1.89 in)

Country of OriginUnited States

Dimension D25,02-25,04 mm (.985-.986 in)

Dimension C30,0 mm (1.18 in)

Installation Dimension C1 (Stock Length)2.90 in

Have questions?Chat on WhatsApp

About This Product

CAU92 is an upreach clamp arm for 8.0 and 9.0 kN capacity Enerpac swing clamps. The stock arm length is 160.0 mm, and the arm can be cut down to a minimum of 45.0 mm. Clamp force at stock length is 2.00 kN. The arm has a Ø25.02–25.04 mm taper bore and an M8 x 1.25 fastening thread. Key dimensions are G 40.0 mm, E 48.0 mm and K 24.9 mm. Installation dimensions (C1) are specified for ST, SU and SL series cylinders. Country of origin is the United States. The angled upreach design allows flexible part clamping and maximum workpiece contact with minimal deflection. The arm can be installed and positioned while the cylinder is mounted in the fixture, with no vise required. It is used in machining fixtures and hydraulic workholding systems.

Features and Benefits

Upreach design allows more flexible part clamping
Easily installed and fastened while the cylinder is mounted in the fixture for exact positioning
Vise not required for fastening the arm
Arm length can be cut from 160.0 mm down to 45.0 mm
Angled arm with minimal deflection achieves maximum workpiece contact

Enerpac CAU92

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension G40,0 mm (1.57 in)

Dimension E48,0 mm (1.89 in)

ST Series Installation Dimension C1 Min. Length84,8 mm (3.34 in)

Country of OriginUnited States

Dimension D25,02-25,04 mm (.985-.986 in)

Dimension C30,0 mm (1.18 in)

Installation Dimension C1 (Stock Length)2.90 in

Dimension K24,9 mm (0.98 in)

SL Series C1 Minimum Length155,7 mm (6.13 in)

Dimension L (Stock Length)160,0 mm

Dimension JM8 x 1,25 mm

Dimension H0.57 in

Installation Dimension C1 (Minimum Length)3.14 in

Dimension H (Minimum)40,9 mm (1.61 in)

Product TypeUpreach Clamp Arm

Dimension B (Minimum)29,7 mm

Dimension L Min. Length45,0 mm (1.77 in)

ST Series C1 Stock Length78,7 mm (3.10 in)

Clamp Force (Stock Length)2,00 kN

Dimension L (Standard)6.30 in

Dimension F0.43 in

SeriesCAU

Dimension F (Minimum)19,3 mm

Dimension M2,3 mm (0.09 in)

Dimension C (Radius)1.18 in

Dimension B (Standard)23,6 mm (0.93 in)

Dimension L Min.1.77 in

Dimension F Min.0.76 in

SU Series C1 Stock Length73,6 mm

Dimension L (Stock Length)6.30 in

SL Series Installation Dimension C1 (Stock Length)5.89 in

SU Series C1 Minimum Length79,9 mm

Dimension B Min.1.17 in

Dimension A190,0 mm (7.48 in)

Product LineWorkholding Tools

Clamp Force (Minimum Length)9,01 kN

Dimension H (Standard)0.57 in

Weight0,8 kg (1.7 lbs)

Dimension H Standard14,5 mm

SL Series C1 Stock Length149,6 mm

Dimension F Standard10,9 mm (0.43 in)

Clamp Force450 lbs
