How can I get a price quote for Enerpac CAU22?

You can request a fast quote for Enerpac CAU22 from Yılsa Engineering. Reference part number CEY-55221B11FDF0. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac CAU22 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac CAU22 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac CAU22?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

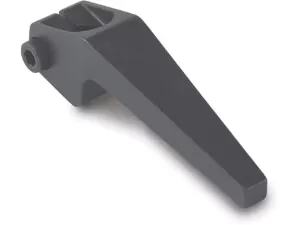

Enerpac CAU22 Upreach Clamp Arm

Enerpac CAU22; upreach clamp arm for 2.1 and 2.2 kN swing clamps, 0.44 kN clamp force at stock length, 82.5 mm arm length, M6 x 1 fastening.

EnerpacMFR # CAU22SKU # CEY-55221B11FDF0

Dimension G20,0 mm (0.79 in)

Dimension E29,7 mm (1.17 in)

Country of OriginUnited States

Dimension D9,98-10,01 mm (.393-.394 in)

SC Series C1 Stock Length53,1 mm

Dimension C16,0 mm (0.63 in)

Have questions?Chat on WhatsApp

About This Product

CAU22 is a compact upreach clamp arm for 2.1 and 2.2 kN capacity Enerpac swing clamps. The stock arm length is 82.5 mm, and the arm can be cut down to a minimum of 25.0 mm. Clamp force at stock length is 0.44 kN. The arm has a Ø9.98–10.01 mm taper bore and an M6 x 1 fastening thread. Key dimensions are G 20.0 mm, E 29.7 mm and K 16.3 mm. Installation dimensions (C1) are specified for ST, SU, SC and SL series cylinders. Country of origin is the United States. The angled upreach design allows flexible clamping of small parts and maximum workpiece contact with minimal deflection. The arm can be installed while the cylinder is mounted in the fixture, with no vise required. It is used in precision machining fixtures.

Features and Benefits

Upreach design allows more flexible part clamping
Easily installed and fastened while the cylinder is mounted in the fixture for exact positioning
Vise not required for fastening the arm
Arm length can be cut from 82.5 mm down to 25.0 mm
Angled arm with minimal deflection achieves maximum workpiece contact

Enerpac CAU22

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension G20,0 mm (0.79 in)

Dimension E29,7 mm (1.17 in)

ST Series Installation Dimension C1 Min. Length59,7 mm (2.35 in)

Country of OriginUnited States

Dimension D9,98-10,01 mm (.393-.394 in)

SC Series C1 Stock Length53,1 mm

Dimension C16,0 mm (0.63 in)

Installation Dimension C1 (Stock Length)2.23 in

Dimension K16,3 mm (0.64 in)

SL Series C1 Minimum Length112,8 mm (4.44 in)

Dimension L (Stock Length)82,5 mm

Dimension JM6 x 1 mm (M6x1,0 in)

Dimension H0.33 in

Installation Dimension C1 (Minimum Length)2.35 in

Dimension H (Minimum)20,8 mm (0.82 in)

Product TypeUpreach Clamp Arm

Dimension B (Minimum)16,8 mm

Dimension L Min. Length25,0 mm (0.98 in)

ST Series C1 Stock Length56,6 mm (2.23 in)

Clamp Force (Stock Length)0,44 kN

SC Series Minimum Length C12.21 in

Dimension L (Standard)3.25 in

Dimension F0.32 in

SeriesCAU

Dimension F (Minimum)13,7 mm

Dimension M1,0 mm (0.04 in)

Dimension C (Radius)0.63 in

SC Series Stock Length C12.09 in

Dimension B (Standard)13,7 mm (0.54 in)

Dimension L Min.0.98 in

Dimension F Min.0.54 in

SU Series C1 Stock Length56,6 mm

Dimension L (Stock Length)3.25 in

SL Series Installation Dimension C1 (Stock Length)4.32 in

SU Series C1 Minimum Length59,7 mm

Dimension B Min.0.66 in

Dimension A98,5 mm (3.88 in)

Product LineWorkholding Tools

Clamp Force (Minimum Length)2,22 kN

Dimension H (Standard)0.33 in

SC Series C1 Minimum Length56,1 mm

Weight0,1 kg (0.03 lbs)

Dimension H Standard8,4 mm

SL Series C1 Stock Length109,7 mm

Dimension F Standard8,1 mm (0.32 in)

Clamp Force100 lbs

Documents & CAD

CAD Files 3

3D Model
