How can I get a price quote for Enerpac BRW102?

You can request a fast quote for Enerpac BRW102 from Yılsa Engineering. Reference part number CEY-7B4B2D9923C5. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac BRW102 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac BRW102 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac BRW102?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

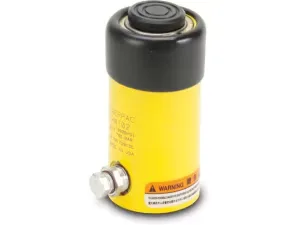

Enerpac BRW102 55.4 mm Stroke Workholding Cylinder

Enerpac BRW102; 55.4 mm stroke, 50.6 kN capacity at 350 bar, 700 bar max pressure, single-acting spring return general purpose workholding cylinder.

EnerpacMFR # BRW102SKU # CEY-7B4B2D9923C5

Dimension G1?4 - 18 mm

Oil Capacity (Advance)77,84 cm³

Dimension VM8 x 1,25 mm

Maximum Operating Pressure700 bar (10,000 psi)

Dimension T17,3 mm

Dimension KM22 x 1,5 mm

Have questions?Chat on WhatsApp

About This Product

BRW102 is a single-acting, spring return, general purpose workholding hydraulic cylinder from the Enerpac BRW series. Its compact design suits fixture, welding and various heavy-duty clamping applications. Stroke is 55.4 mm, capacity at 350 bar is 50.6 kN, effective area 14.39 cm² and oil capacity 77.84 cm³. Operating pressure range is 40–700 bar (10,000 psi max); weight is 2.2 kg. Collar thread and base mounting holes allow flexible mounting. A hardened snap-in removable saddle protects the plunger, while the chrome plated plunger with bronze upper and lower bearings provides long life.

Features and Benefits

Single-acting heavy-duty cylinder for a variety of applications
High pressure (700 bar) design when additional force is required
Compact design, well suited for welding applications
Collar thread and base mounting holes allow flexible mounting
Hardened snap-in removable saddle for additional plunger protection
Chrome plated plunger with bronze upper and lower bearings for long life

Enerpac BRW102

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension G1?4 - 18 mm

Oil Capacity (Advance)77,84 cm³

Dimension VM8 x 1,25 mm

Maximum Operating Pressure700 bar (10,000 psi)

Dimension T17,3 mm

Dimension KM22 x 1,5 mm

Product TypeWorkholding General Purpose Cylinder

SeriesBRW

Dimension Z12,4 mm

Dimension L29,2 mm

Product LineWorkholding Tools

Dimension C115,1 mm

Dimension D1M56 x 2 mm

Dimension A177,0 mm

Country of OriginChina

Dimension F38,1 mm

Dimension U39,6 mm

Dimension D57,2 mm

Dimension J35,1 mm

Dimension H19,1 mm

Stroke55.4 mm

Cylinder Capacity at 350 bar (Advance)50,6 kN

Cylinder Effective Area (Advance)14,39 cm²

Minimum Operating Pressure40 bar

Weight2,2 kg

Return TypeSingle-Acting, Spring Return

Dimension B121,7 mm

Documents & CAD

For this product 3

Instruction ManualHydraulic CylinderPDF·271 KB

Instruction ManualHydraulic CylinderPDF·3.7 MB 4 languages· in one file

BrochureWorkholding Cylinders, EnglishPDF·6.0 MB

Series documents 1· shared by this product series

Repair Parts SheetBRW10 Series Hydraulic Cylinders - Duo VersionPDF·413 KB·English

CAD Files 5

3D Model
