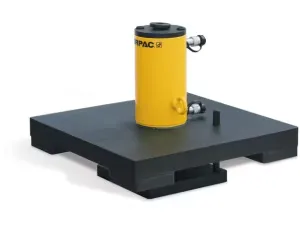

Enerpac BLS506 55 ton Climbing Jack

Enerpac BLS506; 55 ton capacity, 150 mm (5.91 in) stroke, 700 bar (10,000 psi) operating pressure, double-acting hydraulic climbing jack with tilt saddle.

EnerpacMFR # BLS506SKU # CEY-55221B117356

Dimension N170 mm (4.72 in)

Oil Capacity (Advance)1111 cm³ (67.8 in³)

Dimension C318 mm (12.52 in)

Maximum Operating Pressure700 bar (10,000 psi)

Oil Capacity (Retract)335 cm³ (20.44 in³)

ApplicationsLift, Lower, Hold

Have questions?Chat on WhatsApp

About This Product

BLS506 is a 50 ton class hydraulic climbing jack from the Enerpac BLS series. It provides 55 tons of advance capacity and 12 tons (103 kN) of retract capacity, with a 150 mm (5.91 in) stroke and a maximum operating pressure of 700 bar (10,000 psi). Oil capacity is 1111 cm³ for advance and 335 cm³ for retract; the effective advance area is 11.04 in². The jack weighs 170 kg (375 lb), is supplied with a CR400 coupler and is made in the Netherlands. With an integral tilt saddle (up to 5°), a large base and an anti-rotation rod, it is used for lifting, lowering and holding heavy loads.

Features and Benefits

Integral tilt saddle with a maximum tilt angle of up to 5°
Large base with anti-rotation rod for stability and safety
Built-in safety valve prevents accidental over-pressurization
Baked enamel finish for increased corrosion resistance
CR400 coupler included

Enerpac BLS506

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension N170 mm (4.72 in)

Oil Capacity (Advance)1111 cm³ (67.8 in³)

Dimension C318 mm (12.52 in)

Maximum Operating Pressure700 bar (10,000 psi)

Oil Capacity (Retract)335 cm³ (20.44 in³)

ApplicationsLift, Lower, Hold

Dimension K515 mm (20.28 in)

Dimension I1.42 in

Maximum Cylinder Capacity (Advance)498 kN (55 ton)

Coupler UsedCR400 Coupler

Dimension J1240 mm (9.45 in)

Product TypeClimbing Jack

Dimension L565 mm (22.24 in)

SeriesBLS

Dimension J50 mm (1.97 in)

Max. Cylinder Retract Capacity12 ton

Dimension A406 mm (15.98 in)

Product LineIndustrial Tools

Maximum Cylinder Capacity (Retract)103 kN

Weight170 kg (375 lbs)

Cylinder Class50 ton

Country of OriginNetherlands

Dimension F79 mm (3.11 in)

Dimension D127 mm (5 in)

Cylinder Effective Area (Advance)71,2 cm² (11.04 in²)

Cylinder Effective Area (Retract)21,5 cm²

Dimension B556 mm (21.89 in)

Plunger TypeSolid

Cylinder Effective Area (Retract)3.33 in²

Cylinder MaterialSteel

Dimension H56 mm (2.24 in)

Dimension M140 mm (5.51 in)

Stroke150 mm (5.91 in)

Return TypeDouble-Acting, Hydraulic Return

Documents & CAD

For this product 2

Repair Parts SheetBlS Series Climbing Jack, Model BlS-506PDF·529 KB·English

2D DrawingBLS506 drawingPDF·1.0 MB

Series documents 2· shared by this product series

BrochureBLS-Series Climbing Jacks; EnglishPDF·297 KB

BrochureHLT_Heavy_Lifting_Technology_EN-AUPDF·10.5 MB
