How can I get a price quote for Enerpac BHP181?

You can request a fast quote for Enerpac BHP181 from Yılsa Engineering. Reference part number CEY-7B4B2D995F2A. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac BHP181 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac BHP181 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac BHP181?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

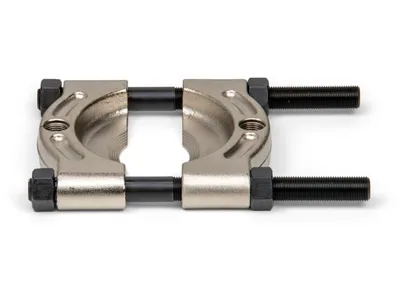

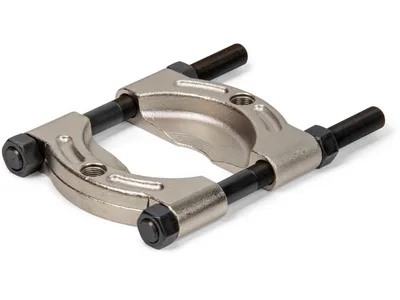

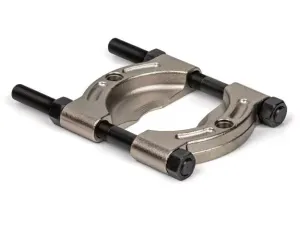

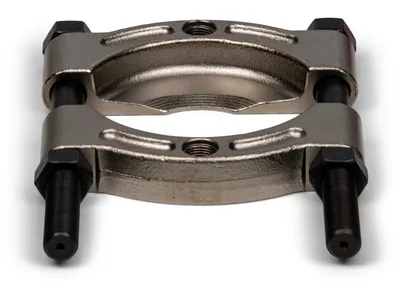

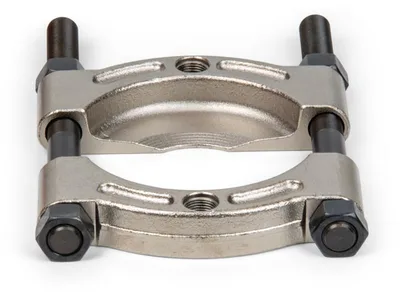

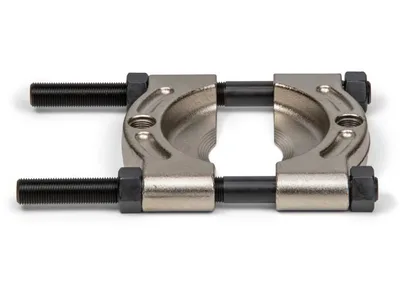

Enerpac BHP181 7 Ton Bearing Separator

Enerpac BHP181; 7 ton class, dimension B 10–110 mm, 5/8"-18 UNF adjusting screw, wedge-edged hydraulic bearing separator.

EnerpacMFR # BHP181SKU # CEY-7B4B2D995F2A

Country of OriginSpain

Dimension B (Max.)110 mm (4.33 in)

Dimension B (Min.)10 mm (0.39 in)

Power SourceHydraulic

Maximum Operating Pressure700 bar (5,000 psi)

ApplicationsPull

Have questions?Chat on WhatsApp

About This Product

The BHP181 is a 7 ton class hydraulic bearing separator from the Enerpac BHP series. It is made of high-strength alloy steel. Its wedge-shaped edges let it be placed behind bearings, gears and similar parts. This makes it suitable for tight spaces where grip puller arms cannot be applied directly. Key technical values: - Maximum operating pressure: 700 bar - Dimension B: 10–110 mm - Adjusting screw thread: 5/8"-18 UNF - Country of origin: Spain The bearing separator should be used with the cross bearing puller and is rated at 50% of puller capacity. It is used in maintenance and repair to remove hard-to-grip bearings, gears and similar components.

Features and Benefits

Wedge-shaped edges fit behind hard-to-reach bearings and gears
Allows removal of the most hard-to-grip components
Made of high-strength alloy steel
Easily adapted to cross bearing pullers for fast and efficient removal
Rated at 50% of puller capacity

Enerpac BHP181

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Country of OriginSpain

Dimension B (Max.)110 mm (4.33 in)

Dimension B (Min.)10 mm (0.39 in)

Power SourceHydraulic

Maximum Operating Pressure700 bar (5,000 psi)

ApplicationsPull

Minimum Spread25 mm (0.39 in)

Adjusting Screw Thread5/8" - 18 UNF

Product TypeBearing Puller

Width126 mm (4.33 in)

SeriesBHP

Model Type7 ton, Bearing Puller

Capacity7 ton

Dimension A110 mm (4.33 in)

Product LineIndustrial Tools

Maximum Spread104 mm (4.33 in)

Documents & CAD

Series documents 6· shared by this product series

Instruction ManualSGH-Series Hydraulic Sync Grip Pullers and AccessoriesPDF·8.4 MB

Instruction ManualSGH-Series Hydraulic Sync Grip Pullers and Accessories (MYANMAR_BU)PDF·8.6 MB

Repair Parts SheetBHP Puller Sets and AttachmentsPDF·1.1 MB

Repair Parts SheetBHP Puller Sets and AttachmentsPDF·2.0 MB 4 languages· in one file

BrochureBHP-Series Bearing Cup Pullers Separators; EnglishPDF·199 KB

BrochureHydraulic_Mechanical_Pullers_EN-AUPDF·3.9 MB

CAD Files 3

3D Model

Alternative Names & Search Terms

BHP181BHP-181BHP 181Enerpac BHP181Enerpac BHP-181BHP181 bearing separatorBHP181 pullerEnerpac BHP seriesEnerpac bearing separatorhydraulic bearing separatorbearing splitterwedge bearing puller7 ton bearing separatorgear removal separatorbearing separator attachmentbearing removal tool
