How can I get a price quote for Enerpac BFZ305?

You can request a fast quote for Enerpac BFZ305 from Yılsa Engineering. Reference part number CEY-55221B11FE4A. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac BFZ305 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac BFZ305 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac BFZ305?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

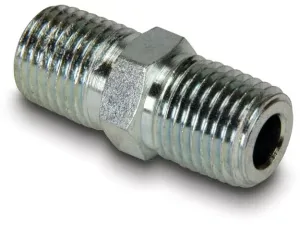

Enerpac BFZ305 700 bar Male Nipple

Enerpac BFZ305; 700 bar (10,000 psi) max. operating pressure, high-pressure NPTF male nipple fitting with 3/8" NPTF to G1/4" connection.

EnerpacMFR # BFZ305SKU # CEY-55221B11FE4A

Country of OriginNetherlands

Connection From3/8" NPTF

Dimension DG1/4"-19 mm

Connection ToG1/4"

Dimension C3/8"-18 NPT mm

Maximum Operating Pressure700 bar (10,000 psi)

Have questions?Chat on WhatsApp

About This Product

Enerpac BFZ305 is a high-pressure NPTF male nipple fitting from the BFZ series, part of the Workholding product line. It provides flexible, safe and leak-free connections between hoses, cylinders, pumps, tubes and gauges. Maximum operating pressure is 700 bar (10,000 psi). The connection runs from 3/8"-18 NPTF to G1/4". Datasheet dimensions: A = 36 mm (1.42 in), B = 19 mm (3/4 in). Country of origin is the Netherlands. It is used in hydraulic workholding fixtures and 700 bar industrial circuits combining NPTF and G (BSPP) threaded components.

Features and Benefits

700 bar (10,000 psi) maximum operating pressure
3/8"-18 NPTF to G1/4" male nipple connection
Compact dimensions: A 36 mm, B 19 mm
Suitable for hydraulic workholding systems
Flexible, safe and leak-free hydraulic connection

Enerpac BFZ305

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Country of OriginNetherlands

Connection From3/8" NPTF

Dimension DG1/4"-19 mm

Connection ToG1/4"

Dimension C3/8"-18 NPT mm

Maximum Operating Pressure700 bar (10,000 psi)

Dimension B19 mm (3/4" in)

Dimension A36 mm (1.42 in)

Product LineWorkholding Tools

Product TypeNPT Male Nipple

SeriesBFZ

Documents & CAD

Series documents 1· shared by this product series

BrochureWorkholding System Components, EnglishPDF·1.3 MB

CAD Files 3

3D Model

Alternative Names & Search Terms

BFZ305BFZ-305BFZ 305Enerpac BFZ305Enerpac BFZ-305Enerpac BFZ 305BFZ305 nippleBFZ305 fittingEnerpac BFZ seriesEnerpac BFZ fittingEnerpac nipple fittingEnerpac workholding fittingNPTF male nipple700 bar male nipple10000 psi hydraulic nipple3/8 NPT to G1/4 nipple3/8 NPTF to G1/4 fittinghigh pressure hydraulic nipple
