How can I get a price quote for Enerpac BFZ16324?

You can request a fast quote for Enerpac BFZ16324 from Yılsa Engineering. Reference part number CEY-55221B116E2D. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac BFZ16324 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac BFZ16324 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac BFZ16324?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

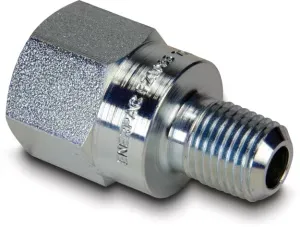

Enerpac BFZ16324 700 bar Adapter

Enerpac BFZ16324; 700 bar max. operating pressure, high-pressure hydraulic adapter fitting with G3/8" to 3/8" NPTF connection.

EnerpacMFR # BFZ16324SKU # CEY-55221B116E2D

Country of OriginNetherlands

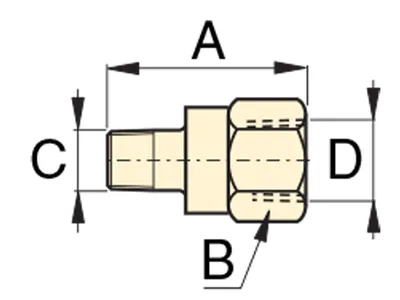

Dimension DG3/8" mm

Dimension C3/8"-18 NPTF mm

Maximum Operating Pressure700 bar

Dimension B24 mm (0.94 in)

Dimension A43 mm (1.69 in)

Have questions?Chat on WhatsApp

About This Product

Enerpac BFZ16324 is a high-pressure hydraulic adapter fitting from the BFZ series. It bridges G (BSPP) and NPTF thread standards for safe, leak-free connection of hoses, cylinders, pumps, tubes and gauges. Maximum operating pressure is 700 bar. Connections are G3/8" and 3/8"-18 NPTF. Datasheet dimensions: A = 43 mm (1.69 in), B = 24 mm (0.94 in). Country of origin is the Netherlands. It is used in industrial applications where hydraulic components of the same nominal size but different thread standards must be joined in 700 bar systems.

Features and Benefits

700 bar maximum operating pressure
G3/8" to 3/8"-18 NPTF thread conversion
Compact dimensions: A 43 mm, B 24 mm
Flexible, safe and leak-free hydraulic connection
Connects components with different thread standards in one system
