How can I get a price quote for Enerpac BD40252?

You can request a fast quote for Enerpac BD40252 from Yılsa Engineering. Reference part number CEY-7B4B2D99064A. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac BD40252 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac BD40252 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac BD40252?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

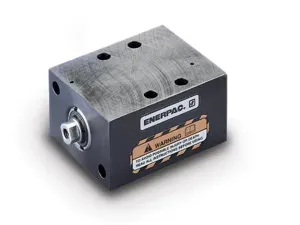

Photo may not represent actual item. Refer to name and product specs for all details.

Enerpac BD40252 44 kN Block Cylinder

Enerpac BD40252; 44.0 kN capacity, 25 mm stroke, 350 bar operating pressure, double-acting block hydraulic cylinder with 40 mm piston.

EnerpacMFR # BD40252SKU # CEY-7B4B2D99064A

Dimension N10,0 mm (0.39 in)

Dimension E40 mm (1.57 in)

Oil Capacity (Advance)31,4 cm³

Dimension V11,0 mm (0.43 in)

Dimension R27,5 mm (1.08 in)

Dimension C68,0 mm (2.68 in)

Have questions?Chat on WhatsApp

About This Product

BD40252 is a double-acting block hydraulic cylinder from the Enerpac BD series, part of the Workholding product line. Its compact block body with BSPP oil port is suited for direct mounting into fixtures and clamping arrangements. At a maximum operating pressure of 350 bar, the cylinder delivers 44.0 kN (approx. 4.5 t) capacity with a 25 mm stroke. The piston diameter is 40 mm. Oil capacity is 31.4 cm³ for advance and 15.8 cm³ for retract. The plunger has an M16 x 2 internal thread, and the cylinder weighs approximately 1.9 kg (4.19 lb). It is used in clamping fixtures that need medium force, in machine tool fixtures, and in automated push/pull applications.

Features and Benefits

BSPP oil port
Internal threaded plunger (M16 x 2) for attaching contact points
Nickel-plated plunger
Black oxide base
Double-acting: hydraulic advance and retract
350 bar maximum operating pressure

Enerpac BD40252

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension N10,0 mm (0.39 in)

Dimension E40 mm (1.57 in)

Oil Capacity (Advance)31,4 cm³

Dimension V11,0 mm (0.43 in)

Dimension R27,5 mm (1.08 in)

Dimension C68,0 mm (2.68 in)

Dimension P55 mm (2.17 in)

Maximum Operating Pressure350 bar

Dimension T9,5 mm (0.37 in)

Dimension KM16 x 2 mm

Dimension I1.38 in

Oil Capacity (Retract)15,8 cm³

Product TypeBlock Cylinder

Dimension L60 mm (2.36 in)

SeriesBD

Dimension Z2,8 - 2,9 mm (0.11 in)

Dimension J32,0 mm (1.26 in)

Dimension A105 mm (4.13 in)

Product LineWorkholding Tools

Weight1,9 kg (4.19 lbs)

Piston Diameter40 mm

Dimension F25 mm (0.98 in)

Dimension O25 mm (0.98 in)

Dimension D80 mm (3.15 in)

Clamping Force Retract26,8 kN

Cylinder Effective Area (Retract)6,3 cm²

Dimension B80 mm (3.15 in)

Dimension Q37,5 mm (1.48 in)

Rod Diameter25 mm

Dimension H12,0 mm (0.47 in)

Dimension M35 mm (1.38 in)

Maximum Cylinder Capacity (Advance)350 kN

Dimension Y11,0 - 11,1 (0.43 - 0.44 in)

Dimension W9,5 mm (0.37 in)

Stroke25 mm

Cylinder Effective Area (Advance)12,6 cm²

Minimum Operating Pressure40 bar

Dimension S22 mm (0.87 in)

Return TypeDouble-Acting, Spring Return

Dimension F124 mm (0.94 in)

Clamping Force (Advance)44,0 kN

Documents & CAD

Series documents 3· shared by this product series

Instruction ManualBlock Cylinders, metricPDF·923 KB 4 languages· in one file

Repair Parts SheetBlock Cylinders BS & BMS Series 43,6 kN BD & BMD Series 44,0PDF·46 KB 3 languages· in one file

BrochureWorkholding Cylinders, EnglishPDF·4.2 MB

CAD Files 5

3D Model
