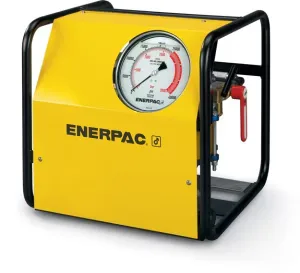

Enerpac ATP1500 1500 bar Air Tensioning Pump

The ATP1500 is an air-driven high pressure hydraulic pump from the Enerpac ATP series within the Bolting Tools product line. It is designed to power equipment requiring hydraulic pressure up to 1500 bar (21,750 psi), typically hydraulic bolt tensioning tools. The pump delivers 0.43 l/min (26 in³/min) at 0 bar and 0.07 l/min (4 in³/min) at 1500 bar. Reservoir capacity is 3.8 L (231 in³), with a usable oil capacity of approximately 3.8 L (1 gal). It operates on 5.5–6.2 bar (80–90 psi) air pressure with an air consumption of 70 scfm. Sound level is 70 dBA and weight is 32 kg (65 lb). Country of origin is the United States. The compact, rugged steel frame protects the pump and makes it easy to handle on site. With adjustable output pressure and a glycerin-filled gauge, it provides controlled pressure for bolt tensioning, flange joints and other high pressure hydraulic applications.
