How can I get a price quote for Enerpac ASC30?

You can request a fast quote for Enerpac ASC30 from Yılsa Engineering. Reference part number CEY-7B4B2D99B3C2. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac ASC30 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac ASC30 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac ASC30?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

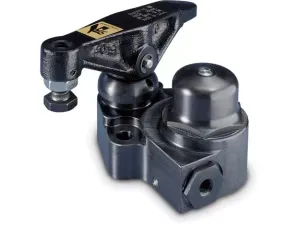

Enerpac ASC30 6.1 kN Swing Clamp

Enerpac ASC30; 1,375 lbf (approx. 6.1 kN) clamping force, 6.4 mm stroke, max. 170 bar, low-profile hydraulic swing clamp.

EnerpacMFR # ASC30SKU # CEY-7B4B2D99B3C2

Dimension N63,5 mm (2.5 in)

Dimension G.125 - 27 mm

Dimension E88,9 mm (3.5 in)

Country of OriginUnited States

Dimension F19,1 mm (0.75 in)

Dimension D6,4 mm (0.25 in)

Have questions?Chat on WhatsApp

About This Product

The ASC30 is an ASC series hydraulic swing clamp from the Enerpac Workholding product line. Its low profile makes it ideal for applications with limited space. Clamping force is 1,375 lbf (approx. 6.1 kN), stroke is 6.4 mm (0.25 in) and maximum operating pressure is 170 bar. Effective cylinder area is 3.5 cm², oil capacity 4.9 cm³ and maximum oil flow 1.9 l/min. The clamp arm swings through a 94–100° arc, and an adjustable bolt in the clamp arm allows clamping stroke adjustment. The quick swing action allows the clamp arm to swing free of the cutter and reclamp after it has passed. It is used for workpiece clamping in machining fixtures. Country of origin is the United States.

Features and Benefits

Adjustable bolt in clamp arm for clamping stroke adjustment
Low profile, ideal for limited space applications
Quick swing action lets the clamp arm swing free of the cutter and reclamp after it has passed
94–100° clamp arm swing arc
1,375 lbf (approx. 6.1 kN) clamping force, 6.4 mm stroke

Enerpac ASC30

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension N63,5 mm (2.5 in)

Dimension G.125 - 27 mm

Dimension E88,9 mm (3.5 in)

Country of OriginUnited States

Dimension F19,1 mm (0.75 in)

Dimension D6,4 mm (0.25 in)

Dimension V10,4 mm (0.41 in)

Dimension C12,7 mm (0.5 in)

Dimension U63,5 mm (2.5 in)

Maximum Operating Pressure170 bar (1200-2500 psi)

Dimension B85,9 mm (3.38 in)

ApplicationsClamp

Dimension K.500-13 mm

Dimension J41,4 mm (1.63 in)

Dimension H69,9 mm (2.75 in)

Oil Capacity4,9 cm³ (0.3 in³)

Product TypeSwing Clamp

Dimension L69,9 mm (2.75 in)

SeriesASC

Maximum Oil Flow1,9 l/min

Cylinder Effective Area3,5 cm² (0.55 in²)

Stroke6.4 mm (0.25 in)

Oil Capacity (Unclamp)115 in³

Minimum Operating Pressure80 bar

Dimension A127,0 mm (5 in)

Product LineWorkholding Tools

Weight2,7 kg (6 lbs)

Clamping Force6,1 kN (1375 lbs)

Documents & CAD

Series documents 3· shared by this product series

Instruction ManualClamp - SwingPDF·440 KB·English

Instruction ManualClamp - SwingPDF·448 KB·English

BrochureWorkholding Swing Clamps, EnglishPDF·1.8 MB

CAD Files 3

3D Model
