How can I get a price quote for Enerpac AR400?

You can request a fast quote for Enerpac AR400 from Yılsa Engineering. Reference part number CEY-7B4B2D99C377. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac AR400 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac AR400 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac AR400?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

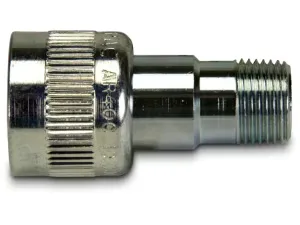

Enerpac AR400 700 bar Female Hydraulic Coupler

Enerpac AR400; 700 bar (10,000 psi), 7.6 l/min flow, 3/8" NPTF, Spee-D-Coupler regular hydraulic coupler female half with steel dust cap.

EnerpacMFR # AR400SKU # CEY-7B4B2D99C377

Dimension G19 mm (0.73 in)

Dimension E26 mm (0.94 in)

Country of OriginUnited States

Dimension F23 mm (0.94 in)

Dimension D28 mm (1.12 in)

Dimension C3/8 nptf mm

Have questions?Chat on WhatsApp

About This Product

The AR400 is a 3/8" female half from the Enerpac Regular Spee-D-Coupler range. It is designed for quick connection of hydraulic lines and is the optimum choice for medium-duty applications such as those using a hand pump. Maximum operating pressure is 700 bar (10,000 psi) and maximum flow is 7.6 l/min (462 in³/min). The thread is 3/8" NPTF. Overall length (A) with male and female halves connected is 77 mm. A female steel dust cap is included to prevent dirt from entering the system. It is used for hydraulic hose connections on hand pump operated cylinders, presses and maintenance equipment. Country of origin is the United States.

Features and Benefits

3/8" Regular Spee-D-Coupler female half
For medium-duty applications; for use with hand pumps
700 bar (10,000 psi) maximum operating pressure
Flow rate up to 7.6 l/min
Includes female steel dust cap to keep dirt out of the system

Enerpac AR400

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension G19 mm (0.73 in)

Dimension E26 mm (0.94 in)

Country of OriginUnited States

Dimension F23 mm (0.94 in)

Dimension D28 mm (1.12 in)

Dimension C3/8 nptf mm

Maximum Operating Pressure700 bar (10,000 psi)

Dimension B42 mm (2.53 in)

Part TypeFemale Half

Max. Operating Pressure10000 psi

Product TypeRegular Coupler

Maximum Flow Capacity7,6 l/min (462 in³/min)

SeriesAR

Dimension A77 mm (3.09 in)

Product LineIndustrial Tools

Documents & CAD

For this product 1

2D DrawingAR400 drawingPDF·25 KB

Series documents 4· shared by this product series

Instruction ManualHydraulic CouplersPDF·237 KB

CertificateEC2B-C-F_RevH_Oct2022PDF·430 KB

BrochureA-C-F-T-Series Hydraulic Couplers; EnglishPDF·360 KB

BrochureSystem Components & Control ValvesPDF·2.8 MB·English

CAD Files 3

3D Model

Alternative Names & Search Terms

AR400AR-400AR 400ar400Enerpac AR400Enerpac AR-400AR400 hydraulic couplerAR400 female couplerEnerpac AR seriesEnerpac Spee-D-CouplerSpee-D-Coupler female half700 bar hydraulic coupler3/8 NPTF female couplerhydraulic quick disconnect femalehand pump couplerhydraulic hose couplercoupler with dust cap
