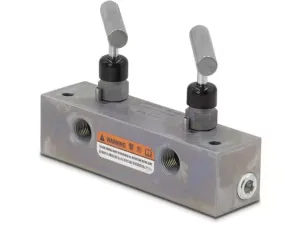

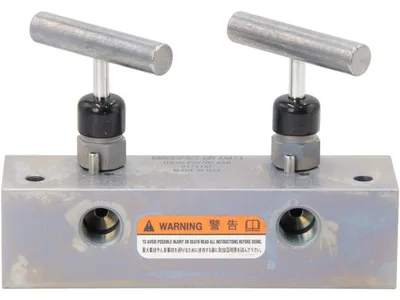

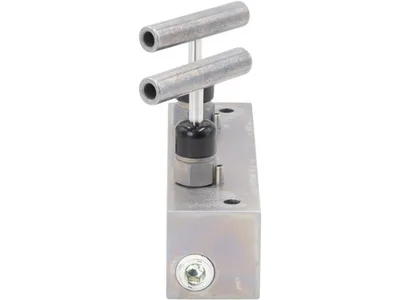

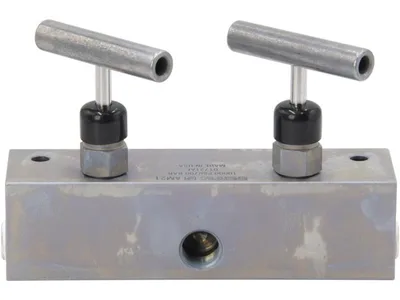

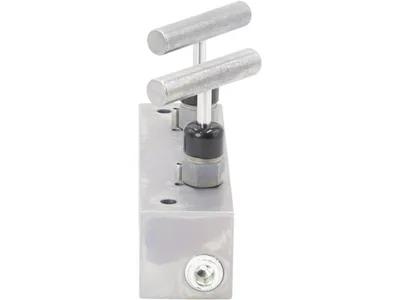

Enerpac AM21 700 bar Split Flow Manifold

Enerpac AM21; 1 inlet, 2 outlet ports, 700 bar (10,000 psi), 3/8" NPTF connections, split-flow hydraulic manifold for controlling two single-acting cylinders simultaneously.

EnerpacMFR # AM21SKU # CEY-55221B11F2DB

Country of OriginUnited States

Inlet Ports1

Oil Ports3/8" NPTF

Maximum Operating Pressure700 bar (10,000 psi)

Oil Ports3/8" NPTF

Product TypeSplit Flow Manifold

Have questions?Chat on WhatsApp

About This Product

The AM21 is a split-flow hydraulic manifold from the Enerpac AM series. It distributes oil from a single inlet port to two outlet ports, allowing two single-acting cylinders to be controlled simultaneously. Maximum operating pressure is 700 bar (10,000 psi) and all port connections are 3/8"-18 NPTF. An integral needle valve handle on each outlet port switches flow on or off individually. Length is 6 in (approx. 152 mm), and mounting holes are provided. It is used in lifting, pressing and maintenance applications where multiple hydraulic cylinders are supplied from one pump. For four outlets, the AM41 model is available in the same series. Country of origin is the United States.

Features and Benefits

Functions as a split-flow valve to control single-acting cylinders simultaneously
Handle used to open and close each port
Easy to connect
Mounting holes provided
All ports 3/8"-18 NPTF
Maximum operating pressure of 700 bar (10,000 psi)

Enerpac AM21

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Country of OriginUnited States

Inlet Ports1

Oil Ports3/8" NPTF

Maximum Operating Pressure700 bar (10,000 psi)

Oil Ports3/8" NPTF

Product TypeSplit Flow Manifold

Length6 in

SeriesAM

Outlet Ports2

Regulated Outlet Ports2

Product LineIndustrial Tools

Documents & CAD

Series documents 4· shared by this product series

Repair Parts SheetManual Shut-Off Valves - V82, V182, V91, AM21 & AM41PDF·79 KB·English

BrochureHF100-A-AM-Series_Hydraulic_Oil_Manifolds_EN-AUPDF·438 KB·English

BrochureHF100-LX-A-AM-Series Hydraulic Oil Manifolds; EnglishPDF·240 KB

BrochureHF95-A-AM-Series Hydraulic Oil Manifolds; EnglishPDF·240 KB

CAD Files 3

3D Model
