How can I get a price quote for Enerpac AH630?

You can request a fast quote for Enerpac AH630 from Yılsa Engineering. Reference part number CEY-937FC77D5B55. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac AH630 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac AH630 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac AH630?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

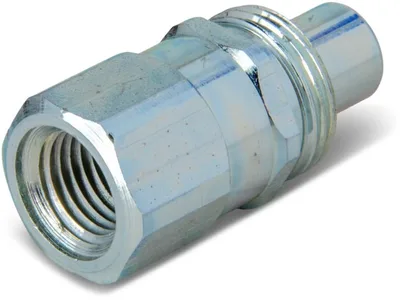

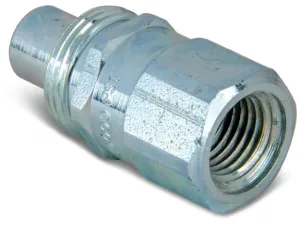

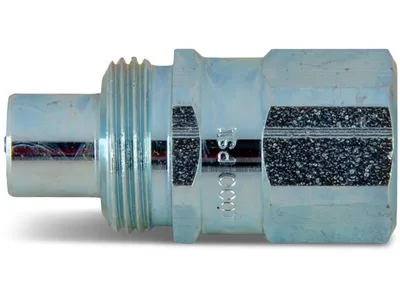

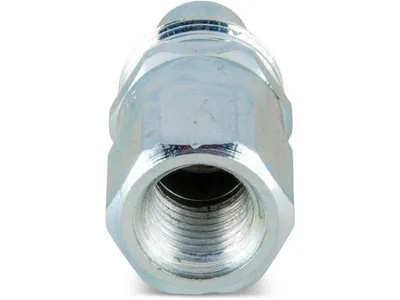

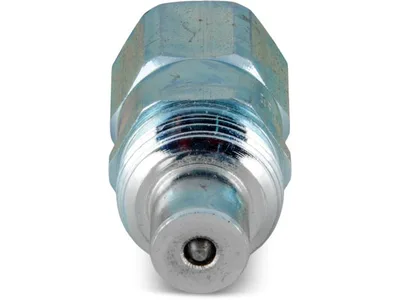

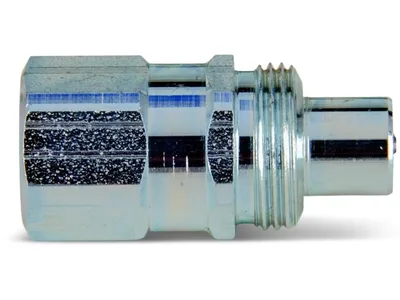

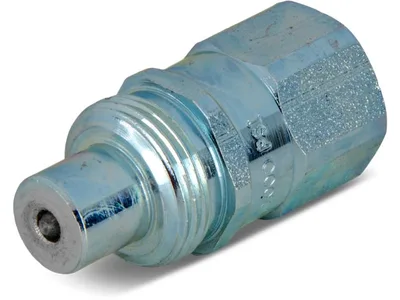

Enerpac AH630 700 bar Coupler Male Half

Enerpac AH630; 700 bar (10,000 psi) max pressure, 1/4" NPTF thread, 7.6 l/min flow; regular hydraulic coupler, male half.

EnerpacMFR # AH630SKU # CEY-937FC77D5B55

Dimension G15 mm (0.57 in)

Dimension E20 mm (0.81 in)

Country of OriginUnited States

Dimension F19 mm (0.75 in)

Dimension D22 mm (0.87 in)

Dimension C1/4 nptf mm

Have questions?Chat on WhatsApp

About This Product

The AH630 is the male half of a 1/4" regular hydraulic coupler from the Enerpac AH series. It is intended for use with small cylinders and hand pumps and includes a female steel dust cap. Maximum operating pressure is 700 bar (10,000 psi) and maximum flow capacity is 7.6 l/min (462 in³/min). The connection thread is 1/4" NPTF. Total length with male and female halves connected is 66 mm (2.61 in). It is used in industrial applications requiring quick connection between hydraulic hand pumps, hoses and small cylinders.

Features and Benefits

1/4" regular coupler with 1/4" NPTF connection
For use with small cylinders and hand pumps
700 bar (10,000 psi) maximum operating pressure
7.6 l/min (462 in³/min) maximum flow capacity
Includes female steel dust cap

Enerpac AH630

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension G15 mm (0.57 in)

Dimension E20 mm (0.81 in)

Country of OriginUnited States

Dimension F19 mm (0.75 in)

Dimension D22 mm (0.87 in)

Dimension C1/4 nptf mm

Maximum Operating Pressure700 bar (10,000 psi)

Dimension B35 mm (1.72 in)

Part TypeMale Half

Max. Operating Pressure10000 psi

Product TypeRegular Hydraulic Coupler

Maximum Flow Capacity7,6 l/min (462 in³/min)

SeriesAH

Dimension A66 mm (2.61 in)

Product LineIndustrial Tools

Documents & CAD

Series documents 4· shared by this product series

Instruction ManualHydraulic CouplersPDF·237 KB

CertificateEC2B-C-F_RevH_Oct2022PDF·430 KB

BrochureA-C-F-T-Series Hydraulic Couplers; EnglishPDF·360 KB

BrochureSystem Components & Control ValvesPDF·2.8 MB·English

CAD Files 3

3D Model
