How can I get a price quote for Enerpac A630?

You can request a fast quote for Enerpac A630 from Yılsa Engineering. Reference part number CEY-7B4B2D991304. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac A630 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac A630 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac A630?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

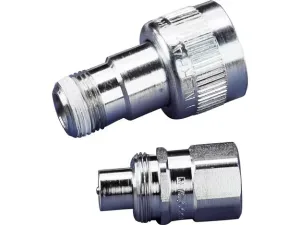

Enerpac A630 700 bar Hydraulic Coupler

Enerpac A630; 700 bar (10,000 psi), 7.6 l/min maximum flow, 1/4 NPTF regular hydraulic coupler, complete set (male+female).

EnerpacMFR # A630SKU # CEY-7B4B2D991304

Dimension G15 mm (0.57 in)

Dimension E20 mm (0.81 in)

Country of OriginUnited States

Dimension F19 mm (0.75 in)

Dimension D22 mm (0.87 in)

Dimension C1/4 nptf mm

Have questions?Chat on WhatsApp

About This Product

The A630 is a complete set of the Enerpac A-Series regular hydraulic coupler, including both male and female halves. It is designed for use with small cylinders and hand pumps, and a female steel dust cap is included. Maximum operating pressure is 700 bar (10,000 psi) and maximum flow capacity is 7.6 l/min (462 in³/min). The connection thread is 1/4 NPTF; total length with male and female halves connected is 66 mm (2.61 in). It is used in maintenance, assembly and field applications requiring quick connection between hoses, pumps and cylinders.

Features and Benefits

1/4 in regular coupler, complete set (male + female)
For use with small cylinders and hand pumps
Includes female steel dust cap
700 bar (10,000 psi) maximum operating pressure
7.6 l/min maximum flow capacity

Enerpac A630

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension G15 mm (0.57 in)

Dimension E20 mm (0.81 in)

Country of OriginUnited States

Dimension F19 mm (0.75 in)

Dimension D22 mm (0.87 in)

Dimension C1/4 nptf mm

Maximum Operating Pressure700 bar (10,000 psi)

Dimension B35 mm (1.72 in)

Part TypeComplete Set

Max. Operating Pressure10000 psi

Product TypeRegular Coupler

Maximum Flow Capacity7,6 l/min (462 in³/min)

SeriesA - Coupler

Dimension A66 mm (2.61 in)

Product LineIndustrial Tools

Documents & CAD

For this product 2

2D DrawingA630 drawingPDF·29 KB

BrochureSystem Components & Control ValvesPDF·2.8 MB·English

Series documents 3· shared by this product series

Instruction ManualHydraulic CouplersPDF·237 KB

CertificateEC2B-C-F_RevH_Oct2022PDF·430 KB

BrochureA-C-F-T-Series Hydraulic Couplers; EnglishPDF·360 KB
