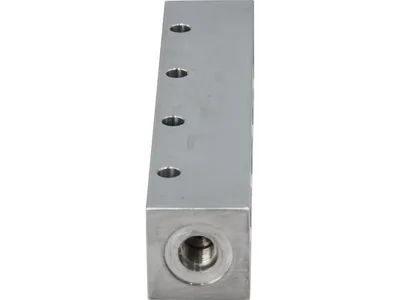

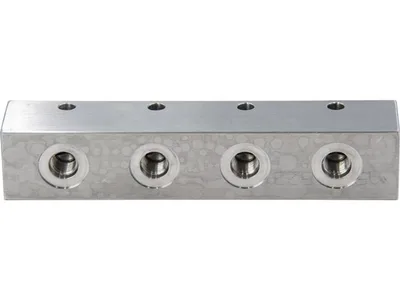

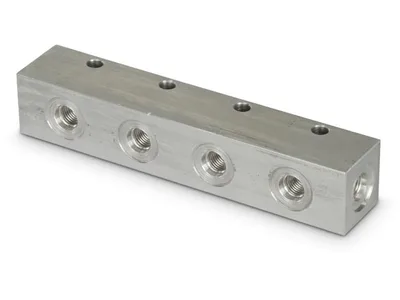

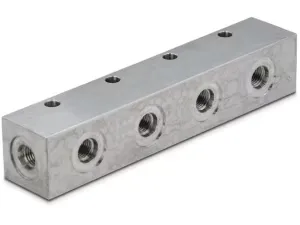

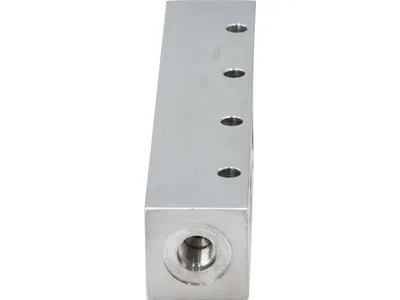

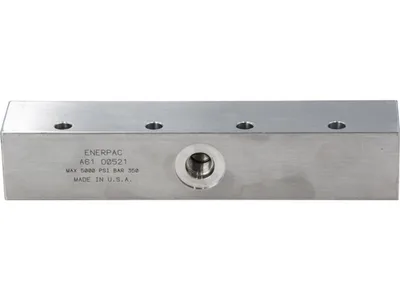

Enerpac A61 7-Port Hydraulic Manifold

Enerpac A61; 7-port hydraulic manifold with SAE #4 ports, 350 bar (5,000 psi) maximum pressure, 165 mm (6.5 in) long.

EnerpacMFR # A61SKU # CEY-0681555D78CB

Number of Ports7

Dimension ESAE #4

Country of OriginUnited States

Dimension F25 mm (1 in)

Dimension D7,1 mm (0.28 in)

Dimension C32 mm (1.25 in)

Have questions?Chat on WhatsApp

About This Product

A61 is an Enerpac A-series hydraulic manifold: a 7-port block that splits hydraulic oil flow from a central point to multiple tools. Standard connections and mounting holes allow easy connection and installation. Oil ports are SAE #4 female; maximum operating pressure is 350 bar (5,000 psi). Block length is 165 mm (6.5 in), cross-section 32 × 32 mm (1.25 × 1.25 in) and mounting hole diameter 7.1 mm. Weight is approximately 0.6 kg. It is used mainly in workholding systems to supply multiple cylinders or clamping elements from a single pump. Country of origin: United States.

Features and Benefits

Simple solution to split oil flow to multiple tools
7 SAE #4 female ports
350 bar (5,000 psi) maximum operating pressure
Easy to connect; mounting holes included
165 × 32 × 32 mm, approx. 0.6 kg

Enerpac A61

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Number of Ports7

Dimension ESAE #4

Country of OriginUnited States

Dimension F25 mm (1 in)

Dimension D7,1 mm (0.28 in)

Dimension C32 mm (1.25 in)

Oil PortsSAE #4

Maximum Operating Pressure350 bar (5,000 psi)

Dimension B32 mm (1.25 in)

Oil PortsSAE #4

Dimension F132 mm (1.25 in)

Product TypeLong Manifold

SeriesA - Manifold

Dimension D138 mm (1.5 in)

Dimension D232 mm (1.25 in)

Model Type7 Port, 5,000 psi, 6.5 in

Dimension A165 mm (6.5 in)

Product LineWorkholding Tools

Dimension F283 mm

Weight0,6 kg (1.4 lbs)

Documents & CAD

Series documents 1· shared by this product series

BrochureWorkholding System Components, EnglishPDF·1.3 MB

CAD Files 3

3D Model
