How can I get a price quote for Enerpac A604?

You can request a fast quote for Enerpac A604 from Yılsa Engineering. Reference part number CEY-937FC77CA76B. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac A604 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac A604 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac A604?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

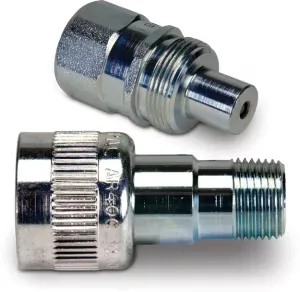

Enerpac A604 3/8" Hydraulic Quick Coupler

Enerpac A604; 3/8" NPTF, 700 bar (10,000 psi), 7.6 l/min flow, Regular Spee-D-Coupler hydraulic quick coupler, complete set with dust cap.

EnerpacMFR # A604SKU # CEY-937FC77CA76B

Dimension G19 mm (0.73 in)

Dimension E26 mm (0.94 in)

Country of OriginUnited States

Dimension F23 mm (0.94 in)

Dimension D28 mm (1.12 in)

Dimension C3/8" NPTF mm

Have questions?Chat on WhatsApp

About This Product

A604 is an Enerpac Regular Spee-D-Coupler® hydraulic quick coupler, supplied as a complete set of male and female halves. It makes quick connections to hydraulic lines and is the optimum choice for medium-duty applications such as those using a hand pump. Thread is 3/8" NPTF, maximum operating pressure 700 bar (10,000 psi) and maximum flow capacity 7.6 l/min (462 in³/min). Total length with male and female halves connected is 77 mm (3.09 in). A female steel dust cap is included to prevent dirt from entering the system. It is used for connections between hand pumps, hydraulic cylinders and hoses in industrial maintenance and workholding applications. Country of origin: United States.

Features and Benefits

3/8" Regular Spee-D-Coupler®, complete set (male + female)
For medium-duty applications; for use with hand pumps
700 bar (10,000 psi) maximum operating pressure
7.6 l/min (462 in³/min) maximum flow capacity
Includes female steel dust cap to keep dirt out

Enerpac A604

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension G19 mm (0.73 in)

Dimension E26 mm (0.94 in)

Country of OriginUnited States

Dimension F23 mm (0.94 in)

Dimension D28 mm (1.12 in)

Dimension C3/8" NPTF mm

Maximum Operating Pressure700 bar (10,000 psi)

Dimension B42 mm (2.53 in)

Part TypeComplete Set

Max. Operating Pressure10000 psi

Product TypeRegular Spee-D-Coupler

Maximum Flow Capacity7,6 l/min (462 in³/min)

SeriesA - Coupler

Dimension A77 mm (3.09 in)

Product LineIndustrial Tools, Workholding Tools

Documents & CAD

For this product 1

2D DrawingA604 drawingPDF·31 KB

Series documents 4· shared by this product series

Instruction ManualHydraulic CouplersPDF·237 KB

CertificateEC2B-C-F_RevH_Oct2022PDF·430 KB

BrochureA-C-F-T-Series Hydraulic Couplers; EnglishPDF·360 KB

BrochureSystem Components & Control ValvesPDF·2.8 MB·English

CAD Files 3

3D Model

Alternative Names & Search Terms

A604A-604A 604Enerpac A604Enerpac A-604A604 couplerA604 quick couplerA604 Spee-D-CouplerEnerpac Spee-D-CouplerEnerpac Regular Spee-D-CouplerEnerpac hydraulic couplerEnerpac A series coupler3/8 NPTF hydraulic coupler700 bar hydraulic quick coupler10000 psi quick couplerhand pump quick couplermale female hydraulic coupler sethydraulic coupler with dust cap
