How can I get a price quote for Enerpac A595?

You can request a fast quote for Enerpac A595 from Yılsa Engineering. Reference part number CEY-7B4B2D991A6B. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac A595 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac A595 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac A595?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

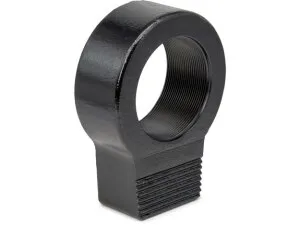

Enerpac A595 12.5 ton Cylinder Attachment

Enerpac A595; 12.5 ton RC cylinder attachment, collar toe with 3 5/16"-12 UN thread, Ø80 mm, 103 mm overall height.

EnerpacMFR # A595SKU # CEY-7B4B2D991A6B

Country of OriginChina

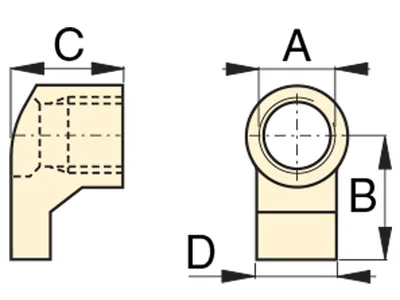

Dimension D80 mm (3.18 in)

Compatible Cylinder SeriesRC

Dimension C51 mm (2.03 in)

Dimension B103 mm (4.06 in)

Product TypeCollar Toe

Have questions?Chat on WhatsApp

About This Product

A595 is an Enerpac A-series cylinder attachment: a collar toe that fits on the collar of 12.5 ton RC-series hydraulic cylinders. Threaded onto the cylinder collar, it moves the load contact point to the side of the cylinder body. The connection thread is 3 5/16"-12 UN. Overall height is 103 mm (4.06 in), outside diameter 80 mm (3.18 in) and dimension C 51 mm (2.03 in). Cylinder capacity with the attachment is rated at 12.5 tons. It is used in maintenance, assembly and disassembly work for lifting, pushing and positioning where the plunger cannot reach the load directly. Country of origin: China.

Features and Benefits

Compatible with 12.5 ton RC-series cylinders
Threads directly onto the 3 5/16"-12 UN collar thread
Cylinder capacity with attachment: 12.5 tons
Compact dimensions: 103 mm height, Ø80 mm

Enerpac A595

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Country of OriginChina

Dimension D80 mm (3.18 in)

Compatible Cylinder SeriesRC

Dimension C51 mm (2.03 in)

Dimension B103 mm (4.06 in)

Product TypeCollar Toe

Cylinder Capacity with Attachment12.5 ton

SeriesA - Cylinder Attachment

Capacity Class12.5 ton

For Use with Cylinder Capacity12,5 ton

Dimension A3 5/16" - 12 UN mm (3 5/16" - 12 in)

Product LineIndustrial Tools

Documents & CAD

Series documents 1· shared by this product series

BrochureMS-Series Universal Maintenance Sets; EnglishPDF·1.5 MB

Alternative Names & Search Terms

A595A-595A 595Enerpac A595Enerpac A-595A595 collar toeA595 cylinder attachmentEnerpac A series cylinder attachmentEnerpac RC cylinder accessoryEnerpac collar toe12.5 ton RC cylinder attachment12.5 ton cylinder collar toehydraulic cylinder collar toeRC cylinder toe attachment3 5/16-12 UN cylinder attachmentcylinder side lift toe
