How can I get a price quote for Dodge SFCN-IP-408R?

You can request a fast quote for Dodge SFCN-IP-408R from Yılsa Engineering. Reference part number YLSWV1L1GZSU3MZ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Dodge SFCN-IP-408R in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Dodge SFCN-IP-408R genuine and new?

Yes. This Dodge product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Dodge SFCN-IP-408R?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

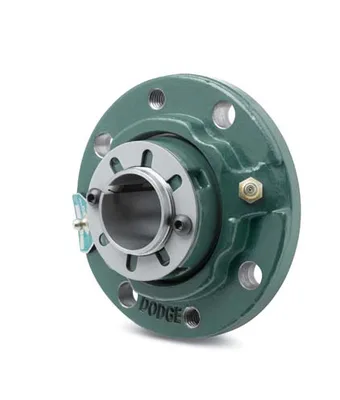

Dodge SFCN-IP-408R

Four-Bolt Piloted Roller Bearing Unit - Spherical Roller Brg., 4-1/2 in Bore , 4-Bolt Piloted Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Steel Housing

DodgeMFR # SFCN-IP-408RSKU # YLSWV1L1GZSU3MZ

Bore Diameter4-1/2 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Piloted Flange

Housing MaterialSteel

Bolt Circle Diameter11.7500 in

Locking DeviceAdapter Mounted

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Piloted Roller Bearing Unit - Spherical Roller Brg., 4-1/2 in Bore , 4-Bolt Piloted Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Steel Housing

Dodge SFCN-IP-408R

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter4-1/2 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Piloted Flange

Housing MaterialSteel

Bolt Circle Diameter11.7500 in

Locking DeviceAdapter Mounted

Expansion TypeNon-Expansion Bearing (Fixed)

Housing ConstructionSolid

Country of OriginUS

Type Of BearingSpherical Roller

Seal TypeTriple-Lip Contact Seal

Pilot Diameter10.2500 in

Insert MaterialSteel

Grease TypeMobilGrease XHP222

LubricationGrease

Bore Length5.23 in

SeriesSFCN-IP

Manufacturer Catalog Number072361

UPC_NO782476369484

Weight45.000 lbs

Dynamic Load Capacity104000 lbf

Housing Type4-Bolt Piloted Flange

Max Rpm1325 rpm

Static Load Capacity132000 lbf

Description072361 SFCN-IP-408R

Shaft AttachmentPush-Pull Adapter

Housing DimensionsS-2000

Material072361

Sensor ReadyYes

Long DescriptionThe SFCN-IP-408R is a spherical roller bearing unit, 4-bolt piloted flange type with a 4-1/2 in bore diameter, non-expansion (fixed) bearing and 11.7500 in bolt circle. It features a steel housing with a 4-bolt piloted flange mounting, adapter mounted locking device, and Trident triple-lip contact seal in the SFCN-IP series. The unit weighs 45.000 lbs.
