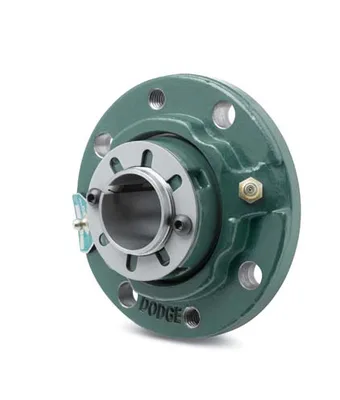

Dodge SFCN-IP-400RE

Four-Bolt Piloted Roller Bearing Unit - Spherical Roller Brg., 4 in Bore , 4-Bolt Piloted Flange Mount, Adapter Mounted, Expansion Bearing (Floating), Steel Housing

DodgeMFR # SFCN-IP-400RESKU # YLS5H6RL35NR4NH

Product TypeFlange-Mount Roller Bearing Units

Bolt Circle Diameter9.3800 in

Bore Diameter4 in

Bore Length4.7 in

Country of OriginUS

Description072383 SFCN-IP-400RE

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Piloted Roller Bearing Unit - Spherical Roller Brg., 4 in Bore , 4-Bolt Piloted Flange Mount, Adapter Mounted, Expansion Bearing (Floating), Steel Housing

Dodge SFCN-IP-400RE

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Product TypeFlange-Mount Roller Bearing Units

Bolt Circle Diameter9.3800 in

Bore Diameter4 in

Bore Length4.7 in

Country of OriginUS

Description072383 SFCN-IP-400RE

Dynamic Load Capacity83000 lbf

Expansion TypeExpansion Bearing (Floating)

UPC_NO782476369699

Grease TypeMobilGrease XHP222

Housing ConstructionSolid

Housing DimensionsS-2000

Housing MaterialSteel

Housing Type4-Bolt Piloted Flange

Insert MaterialSteel

Locking DeviceAdapter Mounted

LubricationGrease

Manufacturer Catalog Number072383

Material072383

Max Rpm1530 rpm

Mounting Type4-Bolt Piloted Flange

Pilot Diameter8.1250 in

Seal TypeTriple-Lip Contact Seal

Sensor ReadyYes

SeriesSFCN-IP

Shaft AttachmentPush-Pull Adapter

Static Load Capacity104000 lbf

Type Of BearingSpherical Roller

Weight40.100 lbs

Long DescriptionThe SFCN-IP-400RE is a spherical roller expansion bearing unit, 4-bolt piloted flange type with a 4 in bore diameter, floating bearing and 9.3750 in bolt circle. It features a steel housing with a 4-bolt piloted flange mounting, adapter mounted locking device, and Trident triple-lip contact seal in the SFCN-IP series. The unit weighs 40.100 lbs.
