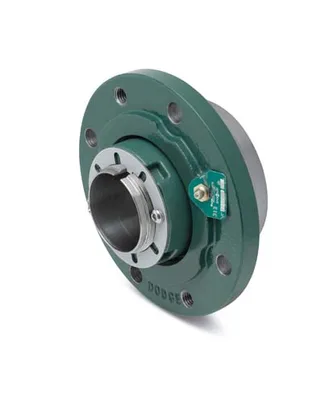

Dodge SFC-IP-408R

Four-Bolt Piloted Roller Bearing Unit - Spherical Roller Brg., 4-1/2 in Bore , 4-Bolt Piloted Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Steel Housing

DodgeMFR # SFC-IP-408RSKU # YLS2CZ505AGWNTO

Bore Diameter4-1/2 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Piloted Flange

Housing MaterialSteel

Bolt Circle Diameter11.7500 in

Locking DeviceAdapter Mounted

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Piloted Roller Bearing Unit - Spherical Roller Brg., 4-1/2 in Bore , 4-Bolt Piloted Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Steel Housing

Dodge SFC-IP-408R

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter4-1/2 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Piloted Flange

Housing MaterialSteel

Bolt Circle Diameter11.7500 in

Locking DeviceAdapter Mounted

Expansion TypeNon-Expansion Bearing (Fixed)

Housing ConstructionSolid

Country of OriginUS

Type Of BearingSpherical Roller

Seal TypeTriple-Lip Contact Seal

Pilot Diameter10.2500 in

Insert MaterialSteel

Grease TypeMobilGrease XHP222

LubricationGrease

Bore Length5.23 in

SeriesSFC-IP

Manufacturer Catalog Number072304

UPC_NO782476368920

Weight41.580 lbs

Dynamic Load Capacity104000 lbf

Housing Type4-Bolt Piloted Flange

Max Rpm1325 rpm

Static Load Capacity132000 lbf

Description072304 SFC-IP-408R

Shaft AttachmentPush-Pull Adapter

Housing DimensionsS-2000

Material072304

Sensor ReadyYes

Long DescriptionThe SFC-IP-408R is a spherical roller bearing unit, 4-bolt piloted flange type with a 4-1/2 in bore diameter, non-expansion (fixed) bearing and 11.7500 in bolt circle. It features a steel housing with a 4-bolt piloted flange mounting, adapter mounted locking device, and Trident triple-lip contact seal in the SFC-IP series. The unit weighs 41.580 lbs.
