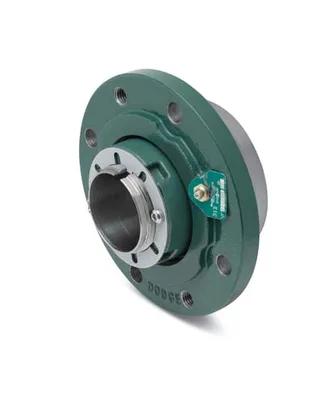

Dodge SFC-IP-400RE

Four-Bolt Piloted Roller Bearing Unit - Spherical Roller Brg., 4 in Bore , 4-Bolt Piloted Flange Mount, Adapter Mounted, Expansion Bearing (Floating), Steel Housing

DodgeMFR # SFC-IP-400RESKU # YLS9YITQCTF7CQZ

Bore Diameter4 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Piloted Flange

Housing MaterialSteel

Bolt Circle Diameter9.3800 in

Locking DeviceAdapter Mounted

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Piloted Roller Bearing Unit - Spherical Roller Brg., 4 in Bore , 4-Bolt Piloted Flange Mount, Adapter Mounted, Expansion Bearing (Floating), Steel Housing

Dodge SFC-IP-400RE

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter4 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Piloted Flange

Housing MaterialSteel

Bolt Circle Diameter9.3800 in

Locking DeviceAdapter Mounted

Expansion TypeExpansion Bearing (Floating)

Housing ConstructionSolid

Country of OriginUS

Type Of BearingSpherical Roller

Seal TypeTriple-Lip Contact Seal

Pilot Diameter8.1250 in

Insert MaterialSteel

Grease TypeMobilGrease XHP222

LubricationGrease

Bore Length4.7 in

SeriesSFC-IP

Manufacturer Catalog Number072333

UPC_NO782476369217

Weight42.110 lbs

Dynamic Load Capacity83000 lbf

Housing Type4-Bolt Piloted Flange

Max Rpm1530 rpm

Static Load Capacity104000 lbf

Description072333 SFC-IP-400RE

Shaft AttachmentPush-Pull Adapter

Housing DimensionsS-2000

Material072333

Sensor ReadyYes

Long DescriptionThe SFC-IP-400RE is a spherical roller expansion bearing unit, 4-bolt piloted flange type with a 4 in bore diameter, floating bearing and 9.3750 in bolt circle. It features a steel housing with a 4-bolt piloted flange mounting, adapter mounted locking device, and Trident triple-lip contact seal in the SFC-IP series. The unit weighs 42.110 lbs.
