How can I get a price quote for Dodge SF4S-IP-311RE?

You can request a fast quote for Dodge SF4S-IP-311RE from Yılsa Engineering. Reference part number YLSR9CBDY5EHMNF. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Dodge SF4S-IP-311RE in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Dodge SF4S-IP-311RE genuine and new?

Yes. This Dodge product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Dodge SF4S-IP-311RE?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

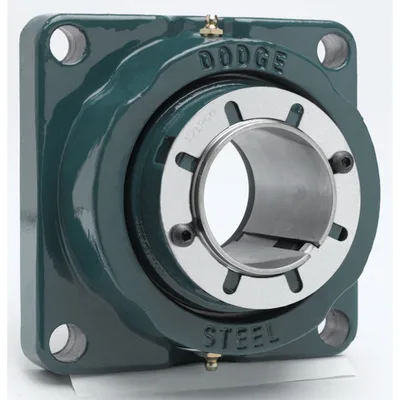

Dodge SF4S-IP-311RE

Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 3-11/16 in Bore , 4-Bolt Flange Mount, Adapter Mounted, Expansion Bearing (Floating), Steel Housing

DodgeMFR # SF4S-IP-311RESKU # YLSR9CBDY5EHMNF

Bore Diameter3-11/16 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialSteel

Locking DeviceAdapter Mounted

Expansion TypeExpansion Bearing (Floating)

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 3-11/16 in Bore , 4-Bolt Flange Mount, Adapter Mounted, Expansion Bearing (Floating), Steel Housing

Dodge SF4S-IP-311RE

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter3-11/16 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialSteel

Locking DeviceAdapter Mounted

Expansion TypeExpansion Bearing (Floating)

Housing ConstructionSolid

Country of OriginUS

Type Of BearingSpherical Roller

Seal TypeTriple-Lip Contact Seal

Insert MaterialSteel

Grease TypeMobilGrease XHP222

LubricationGrease

Bore Length4.7000 in

SeriesSF4S-IP

Manufacturer Catalog Number072223

UPC_NO782476368142

Weight39.140 lbs

Dynamic Load Capacity83000 lbf

Housing Type4-Bolt Flange

Max Rpm1530 rpm

Static Load Capacity104000 lbf

Description072223 SF4S-IP-311RE

Max Bolt Hole Spacing7.6000 in

Min Bolt Hole Spacing7.6000 in

Shaft AttachmentPush-Pull Adapter

Insert Outer Diameter180 mm

Housing DimensionsS-2000

Material072223

Sensor ReadyYes

Long DescriptionThe SF4S-IP-311RE is a spherical roller expansion bearing unit, 4-bolt flange type with a 3-11/16 in bore diameter, floating bearing. It features a steel housing with a 4-bolt flange mounting, adapter mounted locking device, and Trident triple-lip contact seal in the SF4S-IP series. The unit weighs 39.140 lbs.
