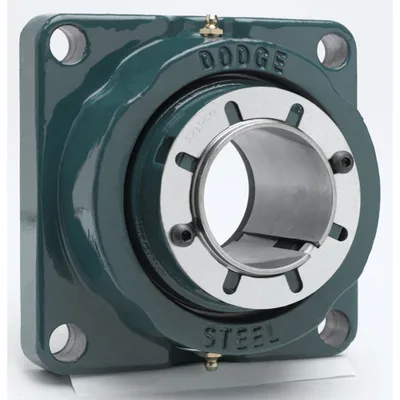

Dodge SF4S-IP-050MR

Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 50 mm Bore , 4-Bolt Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Steel Housing

DodgeMFR # SF4S-IP-050MRSKU # YLS0F4HAJYY8Z3K

Bore Diameter50 mm

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialSteel

Locking DeviceAdapter Mounted

Expansion TypeNon-Expansion Bearing (Fixed)

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 50 mm Bore , 4-Bolt Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Steel Housing

Dodge SF4S-IP-050MR

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter50 mm

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialSteel

Locking DeviceAdapter Mounted

Expansion TypeNon-Expansion Bearing (Fixed)

Housing ConstructionSolid

Country of OriginUS

Type Of BearingSpherical Roller

Seal TypeTriple-Lip Contact Seal

Insert MaterialSteel

Grease TypeMobilGrease XHP222

LubricationGrease

Bore Length2.8600 in

SeriesSF4S-IP

Manufacturer Catalog Number079336

UPC_NO782476765231

Weight7.980 lbs

Dynamic Load Capacity22000 lbf

Housing Type4-Bolt Flange

Max Rpm3520 rpm

Static Load Capacity24000 lbf

Description079336 SF4S-IP-050MR

Max Bolt Hole Spacing4.0700 in

Min Bolt Hole Spacing4.0700 in

Shaft AttachmentPush-Pull Adapter

Insert Outer Diameter90 mm

Housing DimensionsS-2000

Material079336

Sensor ReadyYes

Long DescriptionThe SF4S-IP-050MR is a spherical roller bearing unit, 4-bolt flange type with a 50 mm bore diameter, non-expansion (fixed) bearing. It features a steel housing with a 4-bolt flange mounting, adapter mounted locking device, and Trident triple-lip contact seal in the SF4S-IP series. The unit weighs 7.980 lbs.
