Dodge P2B-SCEZ-014-PCR

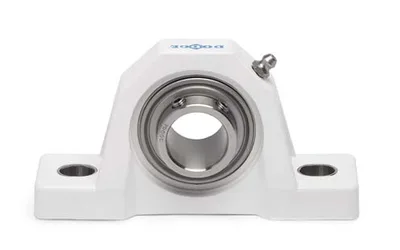

Pillow Block Ball Bearing Unit - 2-Bolt Base, 7/8 in Bore, Polymer Material, Standard Duty, Non-Expansion Bearing (Fixed)
Mounting Type2-Bolt Base
Bore TypeStraight
Bore Diameter7/8 in
Bolt Center To Center Length3.9600 to 4.2000 in
Base To Bore Centerline1.4400 in
Duty TypeStandard Duty
About This Product
Pillow Block Ball Bearing Unit - 2-Bolt Base, 7/8 in Bore, Polymer Material, Standard Duty, Non-Expansion Bearing (Fixed)
Dodge P2B-SCEZ-014-PCR
- Genuine, certified Dodge product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Mounting Type2-Bolt Base
Bore TypeStraight
Bore Diameter7/8 in
Bolt Center To Center Length3.9600 to 4.2000 in
Base To Bore Centerline1.4400 in
Duty TypeStandard Duty
Locking DeviceSet Screw
Seal TypeTriple Lip Contact
Housing MaterialPolymer
Expansion TypeNon-Expansion Bearing (Fixed)
Overall Height2.8600 in
Overall Length5.4800 in
Base Width1.48 in
Overall Width1.4800 in
Finish CoatingUncoated
Insert MaterialPlated Steel
Radial Dynamic Load Capacity3146 lbf
Radial Static Load Capacity1769 lbf
Bore Length1.3400 in
Lubrication TypeLubrication Fitting
Series205
Grease TypeMobilGrease FM222
UPC_NO782476184568
Type Of BearingBall
Housing ConstructionSolid
LubricationGrease
Dynamic Load Capacity3146 lbf
Maximum Speed4500 rpm
Sensor ReadyAdapter Required
Shaft AttachmentSetscrew
Static Load Capacity1769 lbf
Manufacturer Catalog Number064839
Suitable For High Temp AppNo
Take Up Frame SizeLD-10,TS-100
Suitable For Washdown EnvironmentYes
Standards MetAFBMA, AGMA, ASMMA, BSA, CMA, ISO 9002 Certified, MPTA, PTDA, UL
Weight0.81 lbs
Bearing Series205 Series
Bolt Center Diameter0.3750 in
Locking TypeSet Screw
Number Of Mounting Holes2
Product TypePillow Block Ball Bearing Units
