View Details
Dodge
P2B532-ISN-140MFR
MFR #P2B532-ISN-140MFR
SKU #YLSO455KM5Z3OVB
Photo may not represent actual item. Refer to name and product specs for all details.

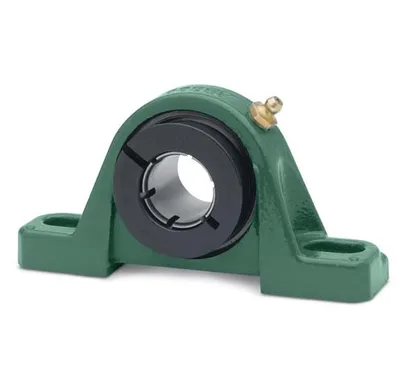

Dodge P2B-DL-112-LL
Pillow Block Ball Bearing Unit - 1-3/4 in Bore, 2-Bolt Base Mount, Clamp Collar Locking, Non-Expansion Bearing (Fixed), Cast Iron Housing Material
Mounting Type2-Bolt Base
Bore Diameter1-3/4 in
Bolt Center To Center Length5.5000 to 6.1900 in
Base To Bore Centerline2.1250 in
Locking DeviceClamp Collar
Seal TypeLabyrinth
About This Product
Pillow Block Ball Bearing Unit - 1-3/4 in Bore, 2-Bolt Base Mount, Clamp Collar Locking, Non-Expansion Bearing (Fixed), Cast Iron Housing Material
Dodge P2B-DL-112-LL
- Genuine, certified Dodge product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Mounting Type2-Bolt Base
Bore Diameter1-3/4 in
Bolt Center To Center Length5.5000 to 6.1900 in
Base To Bore Centerline2.1250 in
Locking DeviceClamp Collar
Seal TypeLabyrinth
Housing MaterialCast Iron
Expansion TypeNon-Expansion Bearing (Fixed)
Country of OriginUS
Insert MaterialSteel
Radial Dynamic Load Capacity7891 lbf
Radial Static Load Capacity4906 lbf
Bore Length2.01 in
Max Rpm5000 rpm
Housing TypeTwo-Bolt Pillow Block
Grease TypeUnirex N2
UPC_NO782477607219
Type Of BearingBall Bearing
Housing ConstructionSolid
LubricationGrease
Dynamic Load Capacity7891 lbf
Sealing TypeLabyrinth
Sensor ReadyAdapter Required
Shaft AttachmentClamp Collar
Static Load Capacity4906 lbf
Suitable For High Temp AppNo
Take Up Frame SizeLD-20,TS-250
Suitable For Washdown EnvironmentNo
Weight5.68 lbs
Bearing Series209 Series
RelubricatableYes
Standoff IncludedNo
Bolt Center Diameter0.5000 in
Locking TypeClamp Collar
Number Of Mounting Holes2
Product TypePillow Block Ball Bearing Units
