Dodge HX30MM 8 X 3.3MM KW

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

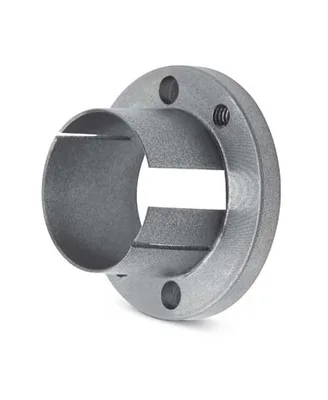

Dodge HX30MM 8 X 3.3MM KW

Quick Disconnect Bushing - QT Bushing, 30 mm Bore, 63.5 mm Flg OD, 33.3 mm LTB

DodgeMFR # HX30MM 8 X 3.3MM KWSKU # YLSHTTXZVCJQQDR

Bushing SizeQT

Bore TypeFinished w/ Keyway

Keyway Size8 x 3.3 mm

Bore Diameter30 mm

Flange Outside Diameter63.5 mm

Flange Thickness6.4 mm

Share

Have questions?Chat on WhatsApp

About This Product

Quick Disconnect Bushing - QT Bushing, 30 mm Bore, 63.5 mm Flg OD, 33.3 mm LTB

Dodge HX30MM 8 X 3.3MM KW

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bushing SizeQT

Bore TypeFinished w/ Keyway

Keyway Size8 x 3.3 mm

Bore Diameter30 mm

Flange Outside Diameter63.5 mm

Flange Thickness6.4 mm

Length Through Bore33.3 mm

Screw Torque9.6 N-m

Barrel Length26.9 mm

Torque Capacity113 N-m

Bolt Circle Diameter50.8 mm

Number Of Bolt Holes2

Screw Thread SizeM6x1

Screw Length22 mm

Manufacturer Catalog Number117357

UPC_NO782476275808

Weight0.60 lbs

Mounting TypeConventional or Reverse

Max Hub Outside Diameter69.9 ( Steel) mm, 76.2 ( Iron) mm

Product TypeSplit Taper Bushings

Related Products

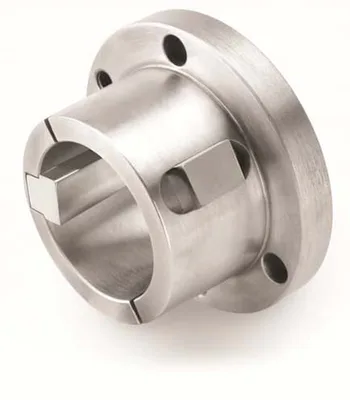

Dodge BX 1-3/16

View Details

Dodge

BX 1-3/16

MFR #BX 1-3/16

SKU #YLS3RB55PCFBXQN

Dodge H-PLUS X 24MM-IK

View Details

Dodge

H-PLUS X 24MM-IK

MFR #H-PLUS X 24MM-IK

SKU #YLSKMXBICKRNJFJ

Dodge H-PLUS X 5/8-IK

View Details

Dodge

H-PLUS X 5/8-IK

MFR #H-PLUS X 5/8-IK

SKU #YLSOFHLH45KKGN0

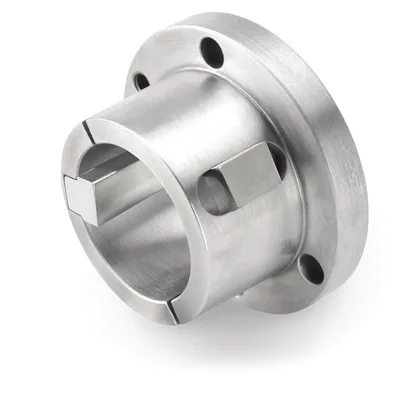

Baldor BX1-1/16
