How can I get a price quote for Dodge FC-S2-315R?

You can request a fast quote for Dodge FC-S2-315R from Yılsa Engineering. Reference part number YLSVU9CFRQ4DTS8. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Dodge FC-S2-315R in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Dodge FC-S2-315R genuine and new?

Yes. This Dodge product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Dodge FC-S2-315R?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

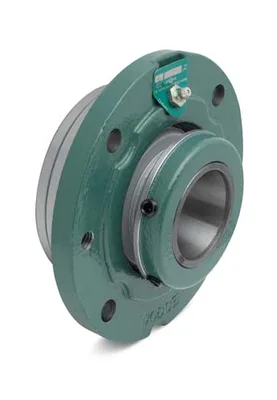

Dodge FC-S2-315R

Four-Bolt Piloted Roller Bearing Unit - Spherical Roller Brg., 3-15/16 in Bore , 4-Bolt Piloted Flange Mount, Set Screw, Non-Expansion Bearing (Fixed), Cast Iron Housing

DodgeMFR # FC-S2-315RSKU # YLSVU9CFRQ4DTS8

Bore Diameter3-15/16 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Piloted Flange

Housing MaterialCast Iron

Bolt Circle Diameter9.3800 in

Locking DeviceSet Screw

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Piloted Roller Bearing Unit - Spherical Roller Brg., 3-15/16 in Bore , 4-Bolt Piloted Flange Mount, Set Screw, Non-Expansion Bearing (Fixed), Cast Iron Housing

Dodge FC-S2-315R

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter3-15/16 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Piloted Flange

Housing MaterialCast Iron

Bolt Circle Diameter9.3800 in

Locking DeviceSet Screw

Expansion TypeNon-Expansion Bearing (Fixed)

Housing ConstructionSolid

Country of OriginUS

Type Of BearingSpherical Roller

Seal TypeTriple-Lip Contact Seal

Pilot Diameter8.1300 in

Insert MaterialSteel

Grease TypeMobilGrease XHP222

LubricationGrease

Bore Length4.7 in

SeriesFC-S2

Manufacturer Catalog Number070662

UPC_NO782475307050

Dynamic Load Capacity83000 lbf

Housing Type4-Bolt Piloted Flange

Max Rpm1075 rpm

Static Load Capacity104000 lbf

Description070662 FC-S2-315R

Shaft AttachmentSetscrew

Housing DimensionsS-2000

Material070662

Sensor ReadyYes

Long DescriptionThe FC-S2-315R is a spherical roller bearing unit, 4-bolt piloted flange type with a 3-15/16 in bore diameter, non-expansion (fixed) bearing and 9.3750 in bolt circle. It features a cast iron housing with a 4-bolt piloted flange mounting, set screw locking device, and Trident triple-lip contact seal in the FC-S2 series. The unit weighs 48.370 lbs.
