How can I get a price quote for Dodge FC-S2-215RE-DRY?

You can request a fast quote for Dodge FC-S2-215RE-DRY from Yılsa Engineering. Reference part number YLSGRMCU80LZ0AW. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Dodge FC-S2-215RE-DRY in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Dodge FC-S2-215RE-DRY genuine and new?

Yes. This Dodge product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Dodge FC-S2-215RE-DRY?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

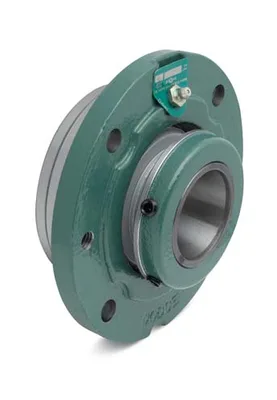

Dodge FC-S2-215RE-DRY

Four-Bolt Piloted Flange Roller Bearing Unit - 2-15/16 in Bore , Set Screw, Expansion Bearing (Floating), Cast Iron Housing

DodgeMFR # FC-S2-215RE-DRYSKU # YLSGRMCU80LZ0AW

Bore Diameter2-15/16 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Piloted Flange

Housing MaterialCast Iron

Bolt Circle Diameter7.5000 in

Locking DeviceSet Screw

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Piloted Flange Roller Bearing Unit - 2-15/16 in Bore , Set Screw, Expansion Bearing (Floating), Cast Iron Housing

Dodge FC-S2-215RE-DRY

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter2-15/16 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Piloted Flange

Housing MaterialCast Iron

Bolt Circle Diameter7.5000 in

Locking DeviceSet Screw

Expansion TypeExpansion Bearing (Floating)

Housing ConstructionSolid

Type Of BearingSpherical Roller

Seal TypeTrident Triple-Lip Contact Seal

Pilot Diameter6.3800 in

Insert MaterialSteel

Grease TypeNone

LubricationNone

Bore Length3.5900 in

SeriesFC-S2

Manufacturer Catalog Number140152

Dynamic Load Capacity41500 lbf

Housing Type4-Bolt Piloted Flange

Max Rpm1490 rpm

Static Load Capacity53000 lbf

Description140152 FC-S2-215RE-DRY

Sensor ReadyYes

Long DescriptionThe FC-S2-215RE-DRY is a spherical roller expansion bearing unit, 4-bolt piloted flange type with a 2-15/16 in bore diameter, floating bearing and 7.5000 in bolt circle. It features a cast iron housing with a 4-bolt piloted flange mounting, set screw locking device, and Trident triple-lip contact seal in the FC-S2 series. The unit weighs 22.070 lbs.
