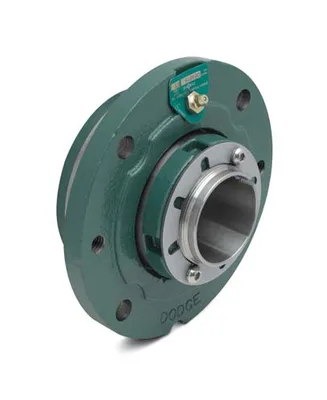

Dodge FC-IP-315L-HT MOD

Four-Bolt Piloted Roller Bearing Unit - Spherical Roller Brg., 3-15/16 in Bore , 4-Bolt Piloted Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Cast Iron Housing

DodgeMFR # FC-IP-315L-HT MODSKU # YLSWR7OCUAJSA5A

Bore Diameter3-15/16 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Piloted Flange

Housing MaterialCast Iron

Bolt Circle Diameter9.3800 in

Locking DeviceAdapter Mounted

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Piloted Roller Bearing Unit - Spherical Roller Brg., 3-15/16 in Bore , 4-Bolt Piloted Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Cast Iron Housing

Dodge FC-IP-315L-HT MOD

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter3-15/16 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Piloted Flange

Housing MaterialCast Iron

Bolt Circle Diameter9.3800 in

Locking DeviceAdapter Mounted

Expansion TypeNon-Expansion Bearing (Fixed)

Housing ConstructionSolid

Country of OriginUS

Type Of BearingSpherical Roller

Seal TypeLabyrinth

Pilot Diameter8.1250 in

Insert MaterialSteel

Grease TypeDupont Krytox GPL 207

LubricationGrease

Bore Length4.7 in

SeriesFC-IP

Manufacturer Catalog Number076812

UPC_NO782475315291

Dynamic Load Capacity83000 lbf

Housing Type4-Bolt Piloted Flange

Max Rpm2200 rpm

Static Load Capacity104000 lbf

Description076812 FC-IP-315L-HT MOD FLG

Shaft AttachmentPush-Pull Adapter

Suitable For High Temp AppYes

Housing DimensionsS-2000

Material076812

Sensor ReadyYes

Long DescriptionThe FC-IP-315L-HT MOD is a spherical roller bearing unit, 4-bolt piloted flange type with a 3-15/16 in bore diameter, non-expansion (fixed) bearing and 9.3750 in bolt circle. It features a cast iron housing with a 4-bolt piloted flange mounting, adapter mounted locking device, labyrinth seal, and is suitable for high temperature applications. The unit weighs 39.580 lbs.
