How can I get a price quote for Dodge FC-IP-307RE-NL?

You can request a fast quote for Dodge FC-IP-307RE-NL from Yılsa Engineering. Reference part number YLSNJBSXCF6XXTC. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Dodge FC-IP-307RE-NL in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Dodge FC-IP-307RE-NL genuine and new?

Yes. This Dodge product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Dodge FC-IP-307RE-NL?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

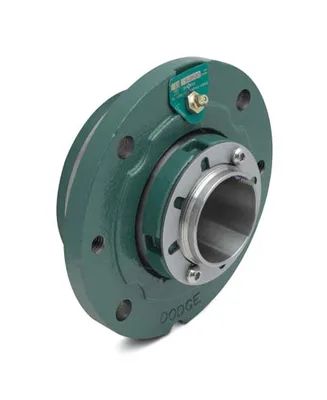

Dodge FC-IP-307RE-NL

Four-Bolt Piloted Roller Bearing Unit - Spherical Roller Brg., 3-7/16 in Bore , 4-Bolt Piloted Flange Mount, Adapter Mounted, Expansion Bearing (Floating), Cast Iron Housing

DodgeMFR # FC-IP-307RE-NLSKU # YLSNJBSXCF6XXTC

Bore Diameter3-7/16 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Piloted Flange

Housing MaterialCast Iron

Bolt Circle Diameter8.6250 in

Locking DeviceAdapter Mounted

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Piloted Roller Bearing Unit - Spherical Roller Brg., 3-7/16 in Bore , 4-Bolt Piloted Flange Mount, Adapter Mounted, Expansion Bearing (Floating), Cast Iron Housing

Dodge FC-IP-307RE-NL

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter3-7/16 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Piloted Flange

Housing MaterialCast Iron

Bolt Circle Diameter8.6250 in

Locking DeviceAdapter Mounted

Expansion TypeExpansion Bearing (Floating)

Housing ConstructionSolid

Country of OriginUS

Type Of BearingSpherical Roller

Seal TypeTriple-Lip Contact Seal

Pilot Diameter7.3750 in

Insert MaterialSteel

Grease TypeMobilGrease XHP222

LubricationGrease

Bore Length4.17 in

SeriesFC-IP

Manufacturer Catalog Number080483

UPC_NO782477035852

Dynamic Load Capacity65500 lbf

Housing Type4-Bolt Piloted Flange

Max Rpm1825 rpm

Static Load Capacity81500 lbf

Description080483 FC-IP-307RE-NL

Shaft AttachmentPush-Pull Adapter

Housing DimensionsS-2000

Material080483

Sensor ReadyYes

Long DescriptionThe FC-IP-307RE-NL is a spherical roller expansion bearing unit, 4-bolt piloted flange type with a 3-7/16 in bore diameter, floating bearing and 8.6250 in bolt circle. It features a cast iron housing with a 4-bolt piloted flange mounting, adapter mounted locking device, and Trident triple-lip contact seal in the FC-IP series. The unit weighs 29.670 lbs.
