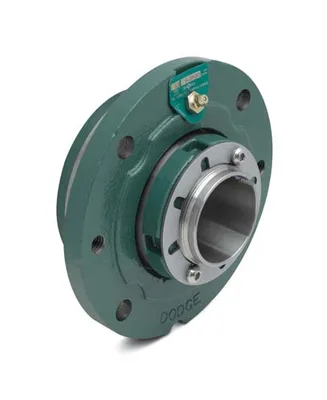

Dodge FC-IP-300L

Four-Bolt Piloted Roller Bearing Unit - Spherical Roller Brg., 3 in Bore , 4-Bolt Piloted Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Cast Iron Housing

DodgeMFR # FC-IP-300LSKU # YLSXGY7TUMH7IXF

Product TypeFlange-Mount Roller Bearing Units

Bolt Circle Diameter7.5000 in

Bore Diameter3 in

Bore Length3.5 in

Country of OriginUS

Description069889 FC-IP-300L

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Piloted Roller Bearing Unit - Spherical Roller Brg., 3 in Bore , 4-Bolt Piloted Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Cast Iron Housing

Dodge FC-IP-300L

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Product TypeFlange-Mount Roller Bearing Units

Bolt Circle Diameter7.5000 in

Bore Diameter3 in

Bore Length3.5 in

Country of OriginUS

Description069889 FC-IP-300L

Dynamic Load Capacity41500 lbf

Expansion TypeNon-Expansion Bearing (Fixed)

UPC_NO782475314416

Grease TypeMobilGrease XHP222

Housing ConstructionSolid

Housing DimensionsS-2000

Housing MaterialCast Iron

Housing Type4-Bolt Piloted Flange

Insert MaterialSteel

Locking DeviceAdapter Mounted

LubricationGrease

Manufacturer Catalog Number069889

Material069889

Max Rpm3400 rpm

Mounting Type4-Bolt Piloted Flange

Pilot Diameter6.3750 in

Seal TypeLabyrinth

Sensor ReadyYes

SeriesFC-IP

Shaft AttachmentPush-Pull Adapter

Static Load Capacity53000 lbf

Type Of BearingSpherical Roller

Weight19.380 lbs

Long DescriptionThe FC-IP-300L is a spherical roller bearing unit, 4-bolt piloted flange type with a 3 in bore diameter, non-expansion (fixed) bearing and 7.5000 in bolt circle. It features a cast iron housing with a 4-bolt piloted flange mounting, adapter mounted locking device, and labyrinth seal in the FC-IP series. The unit weighs 19.380 lbs.
