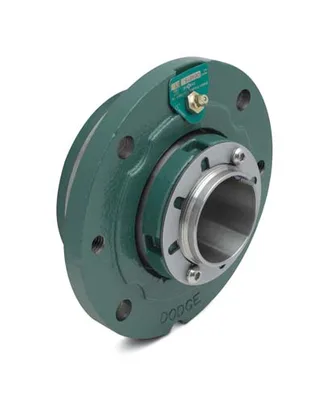

Dodge FC-IP-208LE-HT

Four-Bolt Piloted Roller Bearing Unit - Spherical Roller Brg., 2-1/2 in Bore , 4-Bolt Piloted Flange Mount, Adapter Mounted, Expansion Bearing (Floating), Cast Iron Housing

DodgeMFR # FC-IP-208LE-HTSKU # YLSHTV0FCXFYUBP

Bore Diameter2-1/2 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Piloted Flange

Housing MaterialCast Iron

Bolt Circle Diameter6.5000 in

Locking DeviceAdapter Mounted

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Piloted Roller Bearing Unit - Spherical Roller Brg., 2-1/2 in Bore , 4-Bolt Piloted Flange Mount, Adapter Mounted, Expansion Bearing (Floating), Cast Iron Housing

Dodge FC-IP-208LE-HT

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter2-1/2 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Piloted Flange

Housing MaterialCast Iron

Bolt Circle Diameter6.5000 in

Locking DeviceAdapter Mounted

Expansion TypeExpansion Bearing (Floating)

Housing ConstructionSolid

Country of OriginUS

Type Of BearingSpherical Roller

Seal TypeLabyrinth

Pilot Diameter5.5000 in

Insert MaterialSteel

Grease TypeMobilGrease HTS #2

LubricationGrease

Bore Length3.42 in

SeriesFC-IP

Manufacturer Catalog Number078022

UPC_NO782476581008

Dynamic Load Capacity39000 lbf

Housing Type4-Bolt Piloted Flange

Max Rpm3800 rpm

Static Load Capacity47500 lbf

Description078022 FC-IP-208LE-HT

Shaft AttachmentPush-Pull Adapter

Suitable For High Temp AppYes

Housing DimensionsS-2000

Material078022

Sensor ReadyYes

Long DescriptionThe FC-IP-208LE-HT is a spherical roller expansion bearing unit, 4-bolt piloted flange type with a 2-1/2 in bore diameter, floating bearing and 6.5000 in bolt circle. It features a cast iron housing with a 4-bolt piloted flange mounting, adapter mounted locking device, and labyrinth seal in the FC-IP series. It is suitable for high temperature applications. The unit weighs 29.670 lbs.
