How can I get a price quote for Dodge FC-IP-200L HT?

You can request a fast quote for Dodge FC-IP-200L HT from Yılsa Engineering. Reference part number YLSVCM6HEPVWWQX. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Dodge FC-IP-200L HT in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Dodge FC-IP-200L HT genuine and new?

Yes. This Dodge product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Dodge FC-IP-200L HT?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

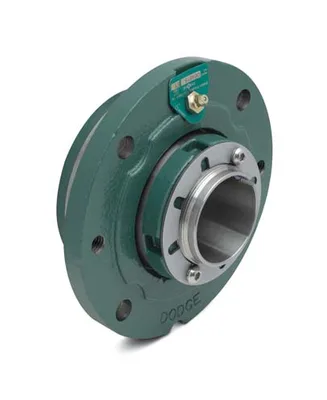

Dodge FC-IP-200L HT

Four-Bolt Piloted Roller Bearing Unit - Spherical Roller Brg., 2 in Bore , 4-Bolt Piloted Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Cast Iron Housing

DodgeMFR # FC-IP-200L HTSKU # YLSVCM6HEPVWWQX

Bore Diameter2 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Piloted Flange

Housing MaterialCast Iron

Bolt Circle Diameter5.3800 in

Locking DeviceAdapter Mounted

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Piloted Roller Bearing Unit - Spherical Roller Brg., 2 in Bore , 4-Bolt Piloted Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Cast Iron Housing

Dodge FC-IP-200L HT

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter2 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Piloted Flange

Housing MaterialCast Iron

Bolt Circle Diameter5.3800 in

Locking DeviceAdapter Mounted

Expansion TypeNon-Expansion Bearing (Fixed)

Housing ConstructionSolid

Type Of BearingSpherical Roller

Seal TypeLabyrinth

Pilot Diameter4.5000 in

Insert MaterialSteel

Grease TypeMobilGrease HTS #2

LubricationGrease

Bore Length2.86 in

SeriesFC-IP

Manufacturer Catalog Number139601

UPC_NO782477298516

Weight8.250 lbs

Dynamic Load Capacity22000 lbf

Housing Type4-Bolt Piloted Flange

Max Rpm5300 rpm

Static Load Capacity24000 lbf

DescriptionFC-IP-200L HT BEARINGS

Shaft AttachmentPush-Pull Adapter

Suitable For High Temp AppYes

Housing DimensionsS-2000

Material139601

Sensor ReadyYes

Long DescriptionThe FC-IP-200L HT is a spherical roller bearing unit, 4-bolt piloted flange type with a 2 in bore diameter, non-expansion (fixed) bearing and 5.3750 in bolt circle. It features a cast iron housing with a 4-bolt piloted flange mounting, adapter mounted locking device, labyrinth seal, and is suitable for high temperature applications in the FC-IP series. The unit weighs 8.250 lbs.
