How can I get a price quote for Dodge FC-IP-103RE?

You can request a fast quote for Dodge FC-IP-103RE from Yılsa Engineering. Reference part number YLSN8ZT13WBM170. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Dodge FC-IP-103RE in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Dodge FC-IP-103RE genuine and new?

Yes. This Dodge product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Dodge FC-IP-103RE?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

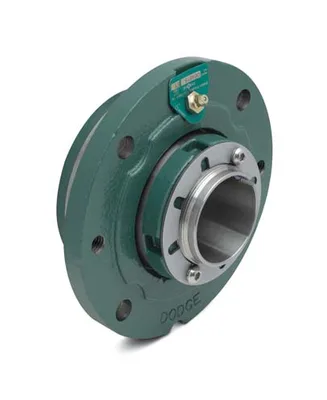

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Dodge FC-IP-103RE

Four-Bolt Piloted Roller Bearing Unit - Spherical Roller Brg., 1-3/16 in Bore , 4-Bolt Piloted Flange Mount, Adapter Mounted, Expansion Bearing (Floating), Cast Iron Housing

DodgeMFR # FC-IP-103RESKU # YLSN8ZT13WBM170

Bore Diameter1-3/16 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Piloted Flange

Housing MaterialCast Iron

Bolt Circle Diameter4.3800 in

Locking DeviceAdapter Mounted

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Piloted Roller Bearing Unit - Spherical Roller Brg., 1-3/16 in Bore , 4-Bolt Piloted Flange Mount, Adapter Mounted, Expansion Bearing (Floating), Cast Iron Housing

Dodge FC-IP-103RE

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter1-3/16 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Piloted Flange

Housing MaterialCast Iron

Bolt Circle Diameter4.3800 in

Locking DeviceAdapter Mounted

Expansion TypeExpansion Bearing (Floating)

Housing ConstructionSolid

Country of OriginUS

Type Of BearingSpherical Roller

Seal TypeTriple-Lip Contact Seal

Pilot Diameter3.6250 in

Insert MaterialSteel

Grease TypeMobilGrease XHP222

LubricationGrease

Bore Length2.63 in

SeriesFC-IP

Manufacturer Catalog Number069838

UPC_NO782475310371

Weight5.800 lbs

Dynamic Load Capacity20800 lbf

Housing Type4-Bolt Piloted Flange

Max Rpm3975 rpm

Static Load Capacity21000 lbf

Description069838 FC-IP-103RE

Shaft AttachmentPush-Pull Adapter

Housing DimensionsS-2000

Material069838

Sensor ReadyYes

Long DescriptionThe FC-IP-103RE is a spherical roller expansion bearing unit, 4-bolt piloted flange type with a 1-3/16 in bore diameter, floating bearing and 4.3750 in bolt circle. It features a cast iron housing with a 4-bolt piloted flange mounting, adapter mounted locking device, and Trident triple-lip contact seal in the FC-IP series. The unit weighs 5.800 lbs.
