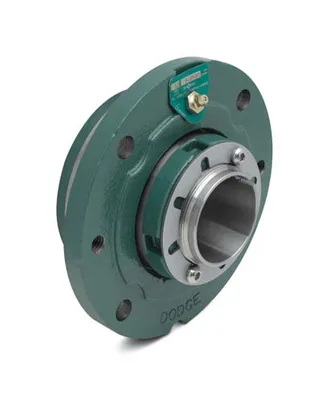

Dodge FC-IP-055MR

Four-Bolt Piloted Roller Bearing Unit - Spherical Roller Brg., 55 mm Bore , 4-Bolt Piloted Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Cast Iron Housing

DodgeMFR # FC-IP-055MRSKU # YLSDHHR4UDUE308

Bore Diameter55 mm

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Piloted Flange

Housing MaterialCast Iron

Bolt Circle Diameter6.0000 in

Locking DeviceAdapter Mounted

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Piloted Roller Bearing Unit - Spherical Roller Brg., 55 mm Bore , 4-Bolt Piloted Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Cast Iron Housing

Dodge FC-IP-055MR

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter55 mm

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Piloted Flange

Housing MaterialCast Iron

Bolt Circle Diameter6.0000 in

Locking DeviceAdapter Mounted

Expansion TypeNon-Expansion Bearing (Fixed)

Housing ConstructionSolid

Country of OriginUS

Type Of BearingSpherical Roller

Seal TypeTriple-Lip Contact Seal

Pilot Diameter5.0000 in

Insert MaterialSteel

Grease TypeMobilGrease XHP222

LubricationGrease

Bore Length3.03 in

SeriesFC-IP

Manufacturer Catalog Number073798

UPC_NO782476372057

Dynamic Load Capacity27000 lbf

Housing Type4-Bolt Piloted Flange

Max Rpm3000 rpm

Static Load Capacity29000 lbf

Description073798 FC-IP-055MR FLG

Shaft AttachmentPush-Pull Adapter

Housing DimensionsS-2000

Material073798

Sensor ReadyYes

Long DescriptionThe FC-IP-055MR is a spherical roller bearing unit, 4-bolt piloted flange type with a 55 mm bore diameter, non-expansion (fixed) bearing and 6.0000 in bolt circle. It features a cast iron housing with a 4-bolt piloted flange mounting, adapter mounted locking device, and Trident triple-lip contact seal in the FC-IP series. The unit weighs 10.400 lbs.
