How can I get a price quote for Dodge FC-E-400R-DRY MOD?

You can request a fast quote for Dodge FC-E-400R-DRY MOD from Yılsa Engineering. Reference part number YLS3KTDQ0U2ZHTX. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Dodge FC-E-400R-DRY MOD in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Dodge FC-E-400R-DRY MOD genuine and new?

Yes. This Dodge product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Dodge FC-E-400R-DRY MOD?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

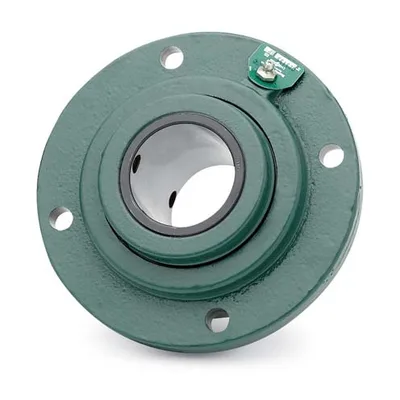

Dodge FC-E-400R-DRY MOD

Four-Bolt Piloted Roller Bearing Unit - Tapered Roller Brg., 4 in Bore , 4-Bolt Piloted Flange Mount, Set Screw, Non-Expansion Bearing (Fixed), Cast Iron Housing

DodgeMFR # FC-E-400R-DRY MODSKU # YLS3KTDQ0U2ZHTX

Bore Diameter4 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Piloted Flange

Housing MaterialCast Iron

Bolt Circle Diameter9.3800 in

Locking DeviceSet Screw

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Piloted Roller Bearing Unit - Tapered Roller Brg., 4 in Bore , 4-Bolt Piloted Flange Mount, Set Screw, Non-Expansion Bearing (Fixed), Cast Iron Housing

Dodge FC-E-400R-DRY MOD

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter4 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Piloted Flange

Housing MaterialCast Iron

Bolt Circle Diameter9.3800 in

Locking DeviceSet Screw

Expansion TypeNon-Expansion Bearing (Fixed)

Housing ConstructionSolid

Country of OriginUS

Type Of BearingTapered Roller

Seal TypeTriple-Lip Contact Seal

Insert MaterialSteel

Grease TypeNone

LubricationNone

Radial Dynamic Load Capacity24400 lbf

Radial Static Load Capacity154000 lbf

Bore Length6.25 in

SeriesFC-E

Manufacturer Catalog Number140070

UPC_NO782477429415

Weight57.280 lbs

Dynamic Load Capacity24400 lbf

Housing TypePiloted Flange

Max Rpm1530 rpm

Static Load Capacity154000 lbf

Description140070 FC-E-400R-DRY MOD PILOTED FLG BRG

Maximum Speed1530 rpm

Shaft AttachmentSetscrew

Housing IDType E

Material140070

Long DescriptionThe FC-E-400R-DRY MOD is a tapered roller bearing unit, 4-bolt piloted flange type with a 4 in bore diameter, non-expansion (fixed) bearing and 9.3750 in bolt circle. It features a cast iron housing with a 4-bolt piloted flange mounting, set screw locking device, and XTS triple-lip contact seal in the FC-E series. The unit weighs 57.280 lbs.
