How can I get a price quote for Dodge FC-E-35MR?

You can request a fast quote for Dodge FC-E-35MR from Yılsa Engineering. Reference part number YLS93MMSEWHEOA0. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Dodge FC-E-35MR in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Dodge FC-E-35MR genuine and new?

Yes. This Dodge product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Dodge FC-E-35MR?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

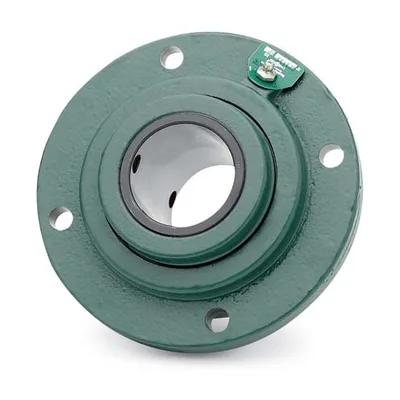

Dodge FC-E-35MR

Four-Bolt Piloted Roller Bearing Unit - Tapered Roller Brg., 1-7/16 in Bore , 4-Bolt Piloted Flange Mount, Set Screw, Non-Expansion Bearing (Fixed), Cast Iron Housing

DodgeMFR # FC-E-35MRSKU # YLS93MMSEWHEOA0

Bore Diameter1-7/16 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Piloted Flange

Housing MaterialCast Iron

Bolt Circle Diameter4.3800 in

Locking DeviceSet Screw

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Piloted Roller Bearing Unit - Tapered Roller Brg., 1-7/16 in Bore , 4-Bolt Piloted Flange Mount, Set Screw, Non-Expansion Bearing (Fixed), Cast Iron Housing

Dodge FC-E-35MR

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter1-7/16 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Piloted Flange

Housing MaterialCast Iron

Bolt Circle Diameter4.3800 in

Locking DeviceSet Screw

Expansion TypeNon-Expansion Bearing (Fixed)

Housing ConstructionSolid

Country of OriginUS

Type Of BearingTapered Roller

Seal TypeTriple-Lip Contact Seal

Pilot Diameter3.6250 in

Insert MaterialSteel

Grease TypeMobilGrease XHP222

LubricationGrease

Radial Dynamic Load Capacity5500 lbf

Radial Static Load Capacity26000 lbf

Bore Length3 in

SeriesFC-E

Manufacturer Catalog Number139288

UPC_NO782477177569

Dynamic Load Capacity5500 lbf

Housing TypePiloted Flange

Max Rpm3820 rpm

Static Load Capacity26000 lbf

Description139288 FC-E-35MR FLG BRG

Maximum Speed3820 rpm

Shaft AttachmentSetscrew

Housing IDType E

Material139288

Long DescriptionThe FC-E-35MR is a tapered roller bearing unit, 4-bolt piloted flange type with a 35 mm bore diameter, non-expansion (fixed) bearing and 4.3750 in bolt circle. It features a cast iron housing with a 4-bolt piloted flange mounting, set screw locking device, and XTS triple-lip contact seal in the FC-E series. The unit weighs 6.120 lbs.
