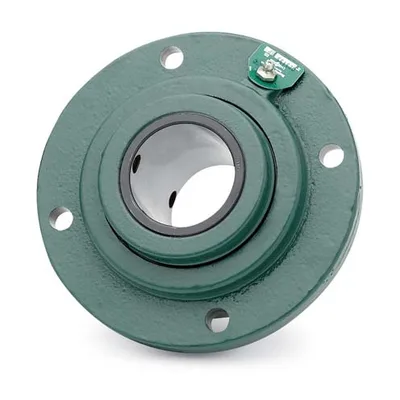

Dodge FC-E-207L-DRY

Four-Bolt Piloted Roller Bearing Unit - Tapered Roller Brg., 2-7/16 in Bore , 4-Bolt Piloted Flange Mount, Set Screw, Non-Expansion Bearing (Fixed), Cast Iron Housing

DodgeMFR # FC-E-207L-DRYSKU # YLSKDI17K8A0XD7

Bore Diameter2-7/16 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Piloted Flange

Housing MaterialCast Iron

Bolt Circle Diameter6.5000 in

Locking DeviceSet Screw

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Piloted Roller Bearing Unit - Tapered Roller Brg., 2-7/16 in Bore , 4-Bolt Piloted Flange Mount, Set Screw, Non-Expansion Bearing (Fixed), Cast Iron Housing

Dodge FC-E-207L-DRY

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter2-7/16 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Piloted Flange

Housing MaterialCast Iron

Bolt Circle Diameter6.5000 in

Locking DeviceSet Screw

Expansion TypeNon-Expansion Bearing (Fixed)

Housing ConstructionSolid

Country of OriginUS

Type Of BearingTapered Roller

Seal TypeLabyrinth

Pilot Diameter5.5000 in

Insert MaterialSteel

Grease TypeMobilGrease XHP222

LubricationNone

Radial Dynamic Load Capacity10600 lbf

Radial Static Load Capacity54000 lbf

Bore Length4 in

SeriesFC-E

Manufacturer Catalog Number139225

UPC_NO782477171253

Weight17.500 lbs

Dynamic Load Capacity10600 lbf

Housing TypePiloted Flange

Max Rpm2420 rpm

Static Load Capacity54000 lbf

Description139225 FC-E-207L-DRY PILOTED FLG BRG

Maximum Speed2420 rpm

Shaft AttachmentSetscrew

Housing IDType E

Material139225

Long DescriptionThe FC-E-207L-DRY is a tapered roller bearing unit, 4-bolt piloted flange type with a 2-7/16 in bore diameter, non-expansion (fixed) bearing and 6.5000 in bolt circle. It features a cast iron housing with a 4-bolt piloted flange mounting, set screw locking device, and labyrinth seal in the FC-E series. The unit weighs 17.500 lbs.
