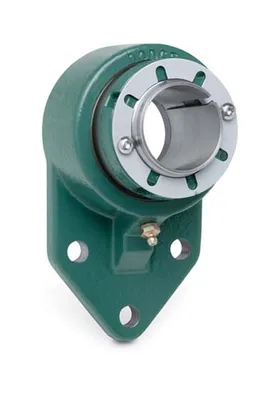

Dodge FB-IP-207RE

Three-Bolt Bracket Style Roller Bearing Unit - Spherical Roller Brg., 2-7/16 in Bore , 3-Bolt Bracket Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Ductile Iron Housing

DodgeMFR # FB-IP-207RESKU # YLSKK46DNNYO744

Bore Diameter2-7/16 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type3-Bolt Bracket

Housing MaterialDuctile Iron

Locking DeviceAdapter Mounted

Expansion TypeNon-Expansion Bearing (Fixed)

Have questions?Chat on WhatsApp

About This Product

Three-Bolt Bracket Style Roller Bearing Unit - Spherical Roller Brg., 2-7/16 in Bore , 3-Bolt Bracket Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Ductile Iron Housing

Dodge FB-IP-207RE

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter2-7/16 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type3-Bolt Bracket

Housing MaterialDuctile Iron

Locking DeviceAdapter Mounted

Expansion TypeNon-Expansion Bearing (Fixed)

Housing ConstructionSolid

Country of OriginUS

Type Of BearingSpherical Roller

Seal TypeTriple-Lip Contact Seal

Insert MaterialSteel

Grease TypeMobilGrease XHP222

LubricationGrease

Bore Length3.2 in

SeriesFB-IP

Manufacturer Catalog Number139097

UPC_NO782477296772

Weight29.240 lbs

Dynamic Load Capacity39000 lbf

Housing Type3-Bolt Bracket

Max Rpm2400 rpm

Static Load Capacity47500 lbf

DescriptionFB-IP-207RE BEARINGS

Max Bolt Hole Spacing3.0000 in

Min Bolt Hole Spacing3.0000 in

Shaft AttachmentPush-Pull Adapter

Insert Outer Diameter120 mm

Housing DimensionsS-2000

Material139097

Sensor ReadyYes

Long DescriptionThe FB-IP-207RE is a spherical roller expansion bearing unit, 3-bolt bracket flange type with a 2-7/16 in bore diameter, floating bearing. It features a cast iron housing with a 3-bolt bracket flange mounting, adapter mounted locking device, and Trident triple-lip contact seal in the FB-IP series. The unit weighs 29.240 lbs.
