How can I get a price quote for Dodge F4S-S2-200L?

You can request a fast quote for Dodge F4S-S2-200L from Yılsa Engineering. Reference part number YLSS90F1YYSEMOP. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Dodge F4S-S2-200L in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Dodge F4S-S2-200L genuine and new?

Yes. This Dodge product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Dodge F4S-S2-200L?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

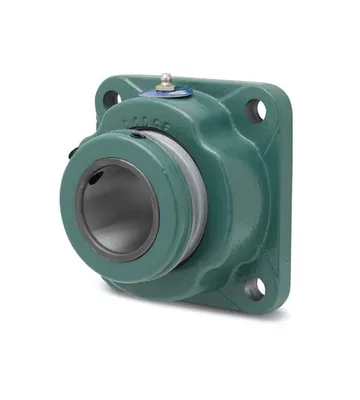

Dodge F4S-S2-200L

Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 2 in Bore , 4-Bolt Flange Mount, Set Screw, Non-Expansion Bearing (Fixed), Cast Iron Housing

DodgeMFR # F4S-S2-200LSKU # YLSS90F1YYSEMOP

Bore Diameter2 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialCast Iron

Locking DeviceSet Screw

Expansion TypeNon-Expansion Bearing (Fixed)

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 2 in Bore , 4-Bolt Flange Mount, Set Screw, Non-Expansion Bearing (Fixed), Cast Iron Housing

Dodge F4S-S2-200L

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter2 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialCast Iron

Locking DeviceSet Screw

Expansion TypeNon-Expansion Bearing (Fixed)

Housing ConstructionSolid

Country of OriginUS

Type Of BearingSpherical Roller

Seal TypeLabyrinth

Insert MaterialSteel

Grease TypeMobilGrease XHP222

LubricationGrease

Bore Length2.86 in

SeriesF4S-S2

Manufacturer Catalog Number070607

UPC_NO782475316793

Dynamic Load Capacity22000 lbf

Housing Type4-Bolt Flange

Max Rpm3180 rpm

Static Load Capacity24000 lbf

Description070607 F4S-S2-200L

Max Bolt Hole Spacing4.0600 in

Min Bolt Hole Spacing4.0600 in

Shaft AttachmentSetscrew

Insert Outer Diameter90 mm

Housing DimensionsS-2000

Material070607

Sensor ReadyYes

Long DescriptionThe F4S-S2-200L is a spherical roller bearing unit, 4-bolt flange type with a 2 in bore diameter, non-expansion (fixed) bearing. It features a cast iron housing with a 4-bolt flange mounting, set screw locking device, and labyrinth seal in the F4S-S2 series. It weighs 7.480 lbs.
