How can I get a price quote for Dodge F4S-IP-303RE?

You can request a fast quote for Dodge F4S-IP-303RE from Yılsa Engineering. Reference part number YLSJHFMUZER6ZHE. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Dodge F4S-IP-303RE in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Dodge F4S-IP-303RE genuine and new?

Yes. This Dodge product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Dodge F4S-IP-303RE?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

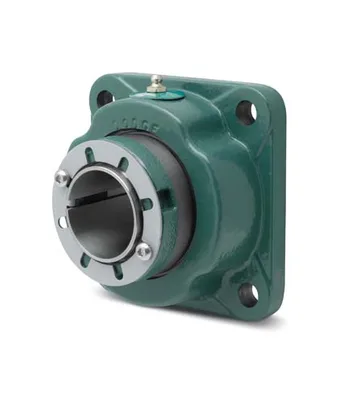

Dodge F4S-IP-303RE

Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 3-3/16 in Bore , 4-Bolt Flange Mount, Adapter Mounted, Expansion Bearing (Floating), Cast Iron Housing

DodgeMFR # F4S-IP-303RESKU # YLSJHFMUZER6ZHE

Product TypeFlange-Mount Roller Bearing Units

Bore Diameter3-3/16 in

Bore Length4.17 in

Country of OriginUS

Description069742 F4S-IP-303RE

Dynamic Load Capacity65500 lbf

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 3-3/16 in Bore , 4-Bolt Flange Mount, Adapter Mounted, Expansion Bearing (Floating), Cast Iron Housing

Dodge F4S-IP-303RE

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Product TypeFlange-Mount Roller Bearing Units

Bore Diameter3-3/16 in

Bore Length4.17 in

Country of OriginUS

Description069742 F4S-IP-303RE

Dynamic Load Capacity65500 lbf

Expansion TypeExpansion Bearing (Floating)

UPC_NO782475309702

Grease TypeMobilGrease XHP222

Housing ConstructionSolid

Housing DimensionsS-2000

Housing MaterialCast Iron

Housing Type4-Bolt Flange

Insert MaterialSteel

Insert Outer Diameter160 mm

Locking DeviceAdapter Mounted

LubricationGrease

Manufacturer Catalog Number069742

Material069742

Max Bolt Hole Spacing6.7200 in

Max Rpm1825 rpm

Min Bolt Hole Spacing6.7200 in

Mounting Type4-Bolt Flange

Seal TypeTriple-Lip Contact Seal

Sensor ReadyYes

SeriesF4S-IP

Shaft AttachmentPush-Pull Adapter

Static Load Capacity81500 lbf

Type Of BearingSpherical Roller

Weight25.830 lbs

Long DescriptionThe F4S-IP-303RE is a spherical roller expansion bearing unit, 4-bolt flange type with a 3-3/16 in bore diameter, floating bearing. It features a cast iron housing with a 4-bolt flange mounting, adapter mounted locking device, and Trident triple-lip contact seal in the F4S-IP series. The unit weighs 25.830 lbs.
